Product Summary
The MC68LK332ACFC16 is a modular microcontroller.
Parametrics
MC68LK332ACFC16 absolute maximum ratings: (1)Supply Voltage VDD: 5.0 V; (2)2 Operating Temperature TA: 25 ℃; (3)3 VDD Supply Current RUN; (4)LPSTOP, VCO off: 113mA; (5)4 Clock Synthesizer Operating Voltage VDDSYN: 5.0 V.
Features
MC68LK332ACFC16 features: (1)External Bus Support; (2)Programmable Chip-Select Outputs; (3)System Protection Logic; (4)Watchdog Timer, Clock Monitor, and Bus Monitor; (5)System Protection Logic; (6)System Clock Based on 32.768-kHz Crystal for Low Power Operation; (7)Test/Debug Submodule for Factory/User Test and Development.

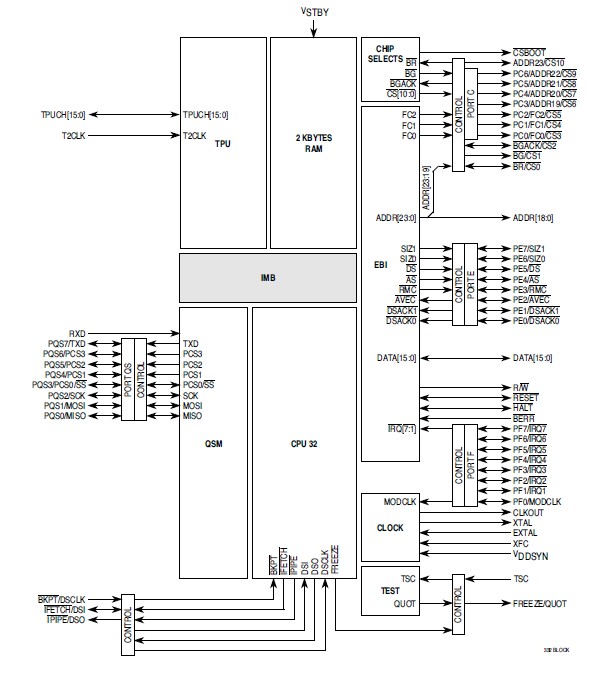

Diagrams
![]() |
