Product Summary
The KMZ43T is a sensitive magnetic field sensor, employing the magnetoresistive effect of thin-film permalloy. The sensor contains two galvanic separated Wheatstone bridges, at a relative angle of 45° to one another.
Parametrics
KMZ43T absolute maximum ratings: (1)VCC1, supply voltage bridge 1: 9V; (2)VCC2, supply voltage bridge 2: 9V; (3)Tstg, storage temperature: -65 to +150℃; (4)Tamb, operating ambient temperature: -40 to +150℃.
Features
KMZ43T features: (1)VCC, supply voltage: 59V; (2)S, sensitivity: 2.1 2.6 mV/°; 2.35 mV/°; (3)Voffset, offset voltage per supply voltage: -2 to +2 mV/V; (4)Rbridge, bridge resistance per bridge: 2.7 to 3.7 kΩ; 3.2kΩ typ.

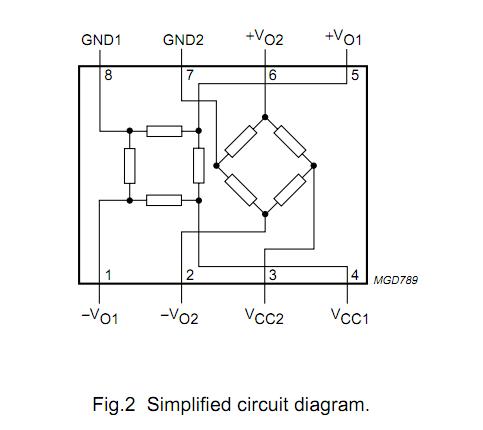

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() KMZ43T |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() KMZ43T /T3 |
![]() NXP Semiconductors |
![]() Board Mount Hall Effect / Magnetic Sensors SNSR MAGNETC TAPE-13 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() KMZ43T,118 |
![]() NXP Semiconductors |
![]() Board Mount Hall Effect / Magnetic Sensors SNSR MAGNETC TAPE-13 |
![]() Data Sheet |
![]()
|
|
