Product Summary
The L200C is a monolithic integrated circuit for voltage and current programmable regulation. It is available in Pentawatt package or 4-lead TO-3 metalcase.Current limiting, power limiting, thermal shutdown and input overvoltage protection (up to 60 V) make the L200C virtually blow-out proof. The L200C can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.
Parametrics
L200C absolute maximum ratings: (1)Vi, DC Input Voltage: 40 V; (2)Vi, Peak Input Voltage (10 ms): 60 V; (3)△Vi-o, Dropout Voltage: 32 V; (4)Io, Output Current: internally limited; (5)Ptot, Power Dissipation: internally limited; (6)Tstg, Storage Temperature: -55 to 150℃; (7)Top, Operating Junction Temperature: -25 to 150℃.
Features
L200C features: (1)adjustable output current up to 2 A (guaranteed up to Tj = 150℃); (2)adjustable output voltage down to 2.85V; (3)input overvoltage protection (up to 60 V, 10ms); (4)short circuit protection; (5)output transistors.o.a.protection; (6)thermal overloadprotection; (7)lowbias current on regulationpin; (8)low standby current drain.

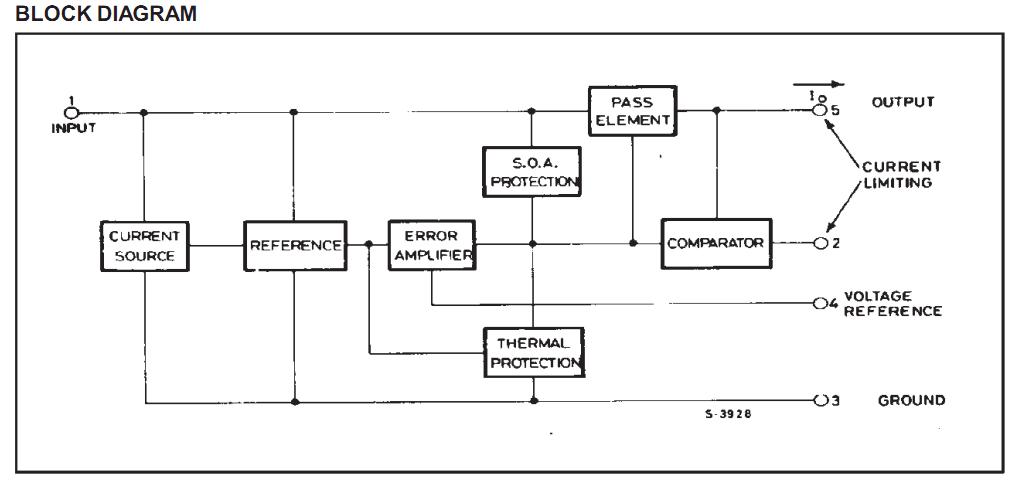

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L200CH |
STMicroelectronics |
Linear Regulators - Standard Adj Voltage/Current |
Data Sheet |
Negotiable |
|
||||||||||||
|
L200CV |
STMicroelectronics |
Linear Regulators - Standard Adj Voltage/Current |
Data Sheet |
|
|
||||||||||||
