AT25160

SOP8, SPI Serial EEPROM, Block Write Protection, 5 ms, 5.0 mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10,000,000.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10,000,000.00

PartNumber:: AT25160

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Miky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-07

From Other Seller

Part Number:AT25160
US $1.00 - 10,000,000.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

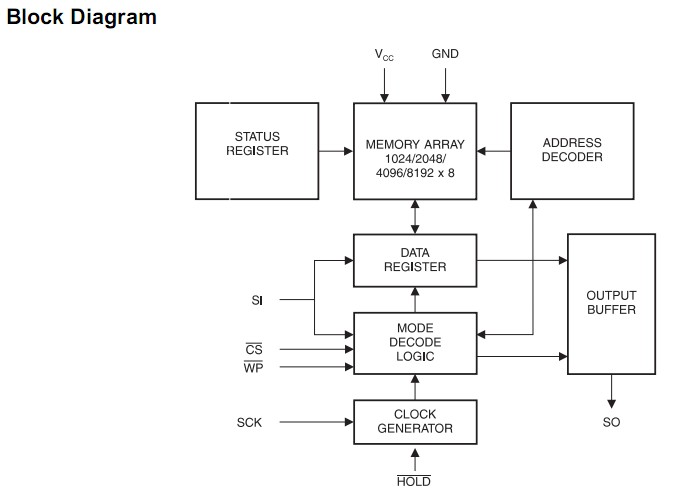

The AT25160 is the SPI Serial EEPROM which provides 8192/16384/32768/65536 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 2048 words of 8 bits each. The AT25160 is optimized for use in many industrial and commercial applications where low power and low voltage operation.

Parametrics

AT25160 absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT25160 features: (1)Serial Peripheral Interface (SPI) Compatible; (2)Supports SPI Modes 0 (0,0) and 3 (1,1); (3)Low Voltage and Standard Voltage Operation: 5.0 (VCC = 4.5V to 5.5V); 2.7 (VCC = 2.7V to 5.5V); 1.8 (VCC = 1.8V to 3.6V); (4)2.1 MHz Clock Rate; (5)32-Byte Page Mode; (6)Block Write Protection: Protect 1/4, 1/2, or Entire Array; (7)Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection; (8)Self-Timed Write Cycle (5 ms Typical); (9)High Reliability: Endurance: 1 Million Write Cycles; Data Retention: 100 Years; ESD Protection: >4000V; (10)Automotive Grade and Extended Temperature Devices Available; (11)8-Pin PDIP, JEDEC SOIC, and 14-Pin and 20-Pin TSSOP Packages.
