Product Summary

The XCF02S is a platform flash in-system programmable configuration PROM. It provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams.

Parametrics

XCF02S absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to +4.0V; (2)VCCO, I/O supply voltage relative to GND: –0.5 to +4.0V; (3)VCCJ, JTAG I/O supply voltage relative to GND: –0.5 to +4.0V; (4)TSTG, Storage temperature (ambient): –65 to +150℃; (5)TJ, Junction temperature: +125 ℃.

Features

XCF02S features: (1)In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2)Low-Power Advanced CMOS NOR FLASH Process; (3)Endurance of 20,000 Program/Erase Cycles; (4)Operation over Full Industrial Temperature Range (-40℃ to +85℃); (5)IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing; (6)JTAG Command Initiation of Standard FPGA Configuration; (7)Cascadable for Storing Longer or Multiple Bitstreams; (8)Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ); (9)I/O Pins Compatible with Voltage Levels Ranging From 1.5V to 3.3V; (10)Design Support Using the Xilinx Alliance ISE and Foundation ISE Series Software Packages.

Diagrams

XCF02S block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

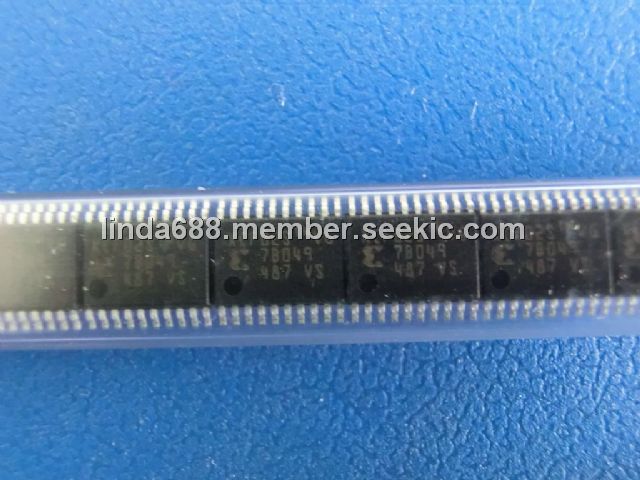

XCF02S
XCF02S

Other


Data Sheet

Negotiable
XCF02SVOG20C
XCF02SVOG20C

Other


Data Sheet

Negotiable
