Product Summary

The MC9S12DJ64CFUE is a microcontroller unit (MCU). The MC9S12DJ64CFUE is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), 64K bytes of Flash EEPROM, 4K bytes of RAM, 1K bytes of EEPROM, two asynchronous serial communications interfaces (SCI), one serial peripheral interfaces (SPI), an 8-channel IC/OC enhanced capture timer, two 8-channel, 10-bit analog-to-digital converters (ADC), an 8-channel pulse-width modulator (PWM), a digital Byte Data Link Controller (BDLC), 29 discrete digital I/O channels (Port A, Port B, Port K and Port E), 20 discrete digital I/O lines with interrupt and wakeup capability, a CAN 2.0 A, B software compatible modules (MSCAN12), and an Inter-IC Bus. The MC9S12DJ64CFUE has full 16-bit data paths throughout.

Parametrics

MC9S12DJ64CFUE absolute maximum ratings: (1)I/O, Regulator and Analog Supply Voltage:-0.3V to 6.0V; (2)Digital Logic Supply Voltage:-0.3V to 3.0V; (3)PLL Supply Voltage:-0.3V to 3.0V; (4)Voltage difference VDDX to VDDR and VDDA:-0.3V to 0.3V; (5)Voltage difference VSSX to VSSR and VSSA:-0.3V to 0.3V; (6)Digital I/O Input Voltage:-0.3V to 6.0V; (7)Analog Reference:-0.3V to 6.0V; (8)XFC, EXTAL, XTAL inputs:-0.3V to 3.0V; (9)TEST input:-0.3V to 10.0V; (10)Instantaneous Maximum Current Single pin limit for all digital I/O pins:-25mA to +25mA; (11)Instantaneous Maximum Current Single pin limit for XFC, EXTAL, XTAL4:-25mA to +25mA; (12)Instantaneous Maximum Current Single pin limit for TEST:-0.25mA to 0mA; (13)Storage Temperature Range:-65℃ to 155℃.

Features

MC9S12DJ64CFUE features: (1)Programmable period and duty cycle; (2)8-bit 8-channel or 16-bit 4-channel; (3)Separate control for each pulse width and duty cycle; (4)Center-aligned or left-aligned outputs; (5)Programmable clock select logic with a wide range of frequencies; (6)Fast emergency shutdown input; (7)Usable as interrupt inputs.

Diagrams

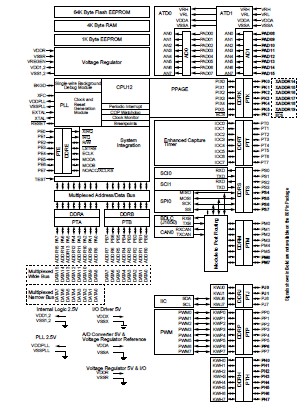

MC9S12DJ64CFUE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

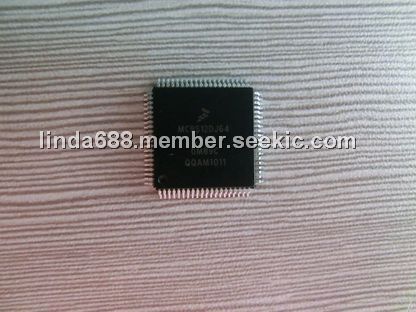

MC9S12DJ64CFUE
MC9S12DJ64CFUE

Freescale Semiconductor

16-bit Microcontrollers (MCU) 64K FLASH HCS12 MCU

Data Sheet

0-1: $7.93
1-25: $7.16
25-50: $6.14
50-100: $4.97
