Product Summary

The TS3702IPT is a micropower CMOS dual voltage comparator with extremely low consumption of 9A typ / comparator (20 times less than bipolar LM393). The push-pull CMOS output stage allows power and space saving by eliminating the external pull-up resistor required by usual opencollector output comparators. Thus response times of TS3702IPT remain similar to the LM393.

Parametrics

TS3702IPT absolute maximum ratings: (1)VCC, + Supply voltage: 18V; (2)Vid, Differential input voltage: ±18V; (3)Vi, Input voltage: 18V; (4)Vo, Output voltage: 18V; (5)Io, Output current: 20mA; (6)IF, Forward current in ESD protection diodes on input: 50 mA; (7)pd, Power dissipation: 710mW; (8)Tstg, Storage temperature range: -65 to +150℃; (9)ESD HBM: human body model: 400V; (10)ESD MM: machine model: 50V; (11)ESD CDM: charged device model: 1.5kV.

Features

TS3702IPT features: (1)Push-pull CMOS output (no external pull-up resistor required); (2)Extremely low supply current: 9A typ / comparator; (3)Wide single supply range: 2.7V to 16V or dual supplies (±1.35V to ±8V); (4)Extremely low input bias current: 1pA typ; (5)Extremely low input offset currents: 1pA typ; (6)Input common-mode voltage range includes GND; (7)High input impedance: 1012 typ; (8)Fast response time: 2s typ for 5mV overdrive; (9)Pin-to-pin and functionally compatible with bipolar LM393.

Diagrams

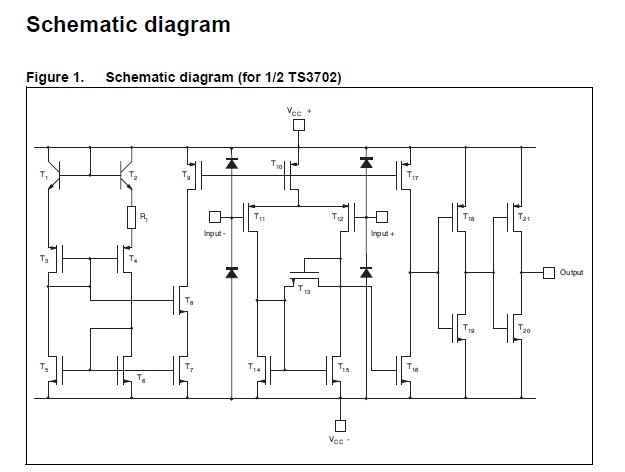

TS3702IPT schematic diagram
