Product Summary

The HMC1051Z is a magnetoresistive sensor designed for low field magnetic sensing. The advantage of the HMC1051Z is in the near-perfectly orthogonal dual sensor on a single chip with shared set/reset and offset coils/straps included. The HMC1051Z utilizes Honeywell’s Anisotropic Magnetoresistive (AMR) technology that provides advantages over coil based magnetic sensors. Applications for the HMC1051Z include low cost Compassing, Magnetometry, and Current Sensing.

Parametrics

HMC1051Z absolute maximum ratings: (1)Package/Case: 8 Pin SIP; (2)Sensing Range: ±6g; (3)Operating Temperature: -40 to 125℃; (4)Output Type: Differential Voltage; (5)Type: Linear; (6)Voltage - Supply: 1.8 V to 20 V; (7)Lead Free Status: Lead Free; (8)RoHS Status: RoHS Compliant.

Features

HMC1051Z features: (1)Miniature Surface-Mount Packages; (2)Leaded and Leadless Packages; (3)Low Voltage Operations (1.8V); (4)Low Cost; (5)Tape & Reel Packaging Options; (6)4-Element Wheatstone Bridge; (7)Wide Magnetic Field Range (+/-6 Oe); (8)Patented Offset and Set/Reset Straps.

Diagrams

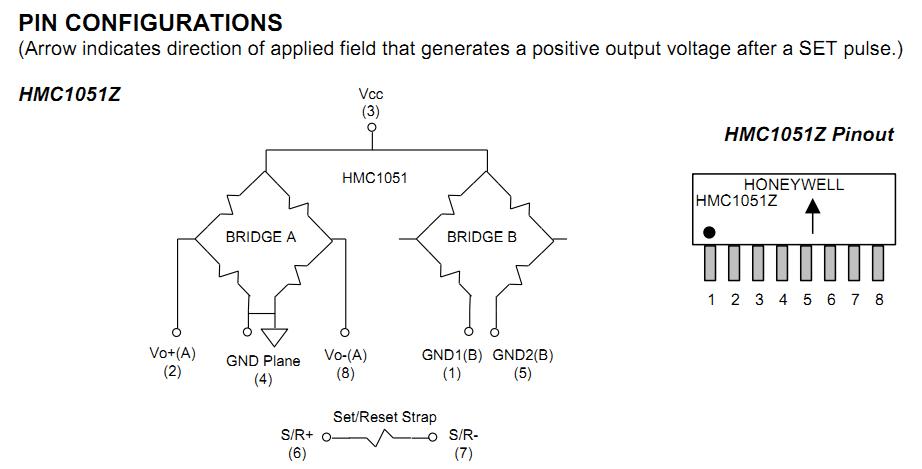

HMC1051Z pin configuration
