P87LPC764BD

Product Summary

The P87LPC764BD is a 20-pin single-chip microcontroller designed for low pin count applications demanding high-integration, low cost solutions over a wide range of performance requirements. A member of the Philips low pin count family, the P87LPC764BD offers programmable oscillator configurations for high and low speed crystals or RC operation, wide operating voltage range, programmable port output configurations, selectable Schmitt trigger inputs, LED drive outputs, and a built-in watchdog timer. The P87LPC764BD is based on an accelerated 80C51 processor architecture that executes instructions at twice the rate of standard 80C51 devices.

Parametrics

P87LPC764BD absolute maximum ratings: (1)Operating temperature under bias: –55 to +125℃; (2)Storage temperature range: –65 to +150℃; (3)Voltage on RST/VPP pin to VSS: 0 to +11.0 V; (4)Voltage on any other pin to VSS: –0.5 to VDD+0.5V V; (5)Maximum IOL per I/O pin: 20 mA; (6)Power dissipation (based on package heat transfer, not device power consumption): 1.5 W.

Features

P87LPC764BD features: (1)4.5 V to 5.5 V for P87LPC764HDH; (2)2.7 V to 6.0 V operating range for digital functions; (3)4 kbytes EPROM code memory; (4)128 byte RAM data memory; (5)32 byte customer code EPROM allows serialization of devices,; (6)storage of setup parameters, etc; (7)Two 16-bit counter/timers. Each timer may be configured to toggle a port output upon timer overflow; (8)Two analog comparators; (9)Full duplex UART; (10)I2C communication port; (11)Eight keypad interrupt inputs, plus two additional external interrupt inputs; (12)Four interrupt priority levels.Watchdog timer with separate on-chip oscillator, requiring no external components. The watchdog timeout time is selectable from 8 values; (13)Active low reset. On-chip power-on reset allows operation with no external reset components; (14)Low voltage reset. One of two preset low voltage levels may be; (15)selected to allow a graceful system shutdown when power fails.; (16)May optionally be configured as an interrupt.

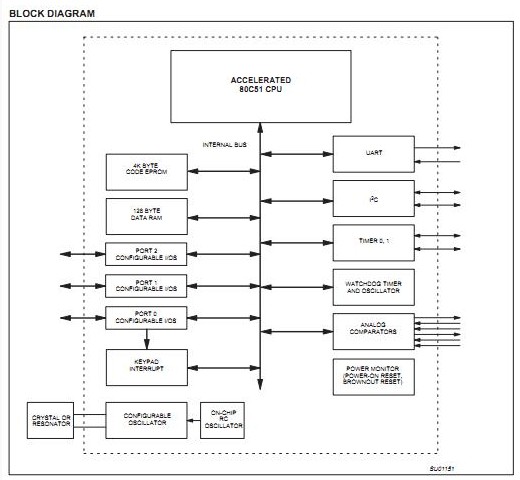

Diagrams
