Product Summary

The XC2S200-5PQG208C is a Field-Programmable Gate Array which gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XC2S200-5PQG208C offers densities ranging from 15,000 to 200,000 system gates.

Parametrics

XC2S200-5PQG208C absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to 3.0 V; (2)Supply voltage relative to GND: –0.5 to 4.0 V; (3)Input reference voltage: –0.5 to 3.6 V; (4)Input voltage relative to GND: 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (5)Voltage applied to 3-state output: 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (6)Storage temperature (ambient): –65 to +150 ℃; (7)Junction temperature: +125 ℃.

Features

XC2S200-5PQG208C features: (1)Second generation ASIC replacement technology: Densities as high as 5,292 logic cells with up to 200,000 system gates, Streamlined features based on Virtex FPGA architecture, Unlimited reprogrammability, Very low cost, Cost-effective 0.18 micron process; (2)System level features: Fully PCI compliant, Low-power segmented routing architecture, Full readback ability for verification/observability.

Diagrams

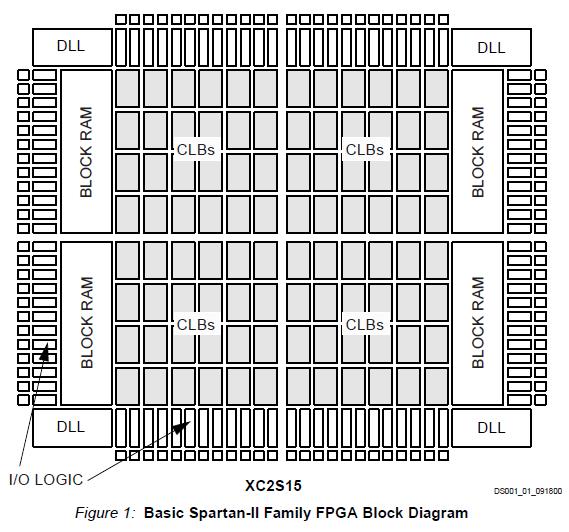

XC2S200-5PQG208C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC2S200-5PQG208C
XC2S200-5PQG208C


IC SPARTAN-II FPGA 200K 208-PQFP

Data Sheet

0-1: $15.75
