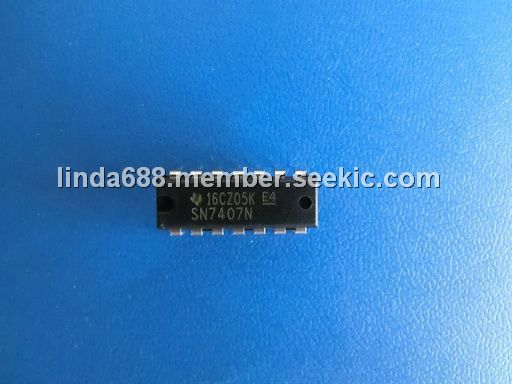

Product Summary

The SN7407N TTL hex buffers/driver features high-voltage open-collector output for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays) and also is characterized for use as buffer for driving TTL inputs. The SN7407N has minimum breakdown voltage of 30 V.

Parametrics

SN7407N absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 5.5 V; (3)Output voltage, VO: 30 V; (4)Package thermal impedance: D package 86℃/W; (5)N package: 80℃/W; (6)NS package: 76℃/W; (7)Storage temperature range: -65 to 150℃.

Features

SN7407N features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays; (5)Inputs Fully Compatible With Most TTL Circuits.

Diagrams

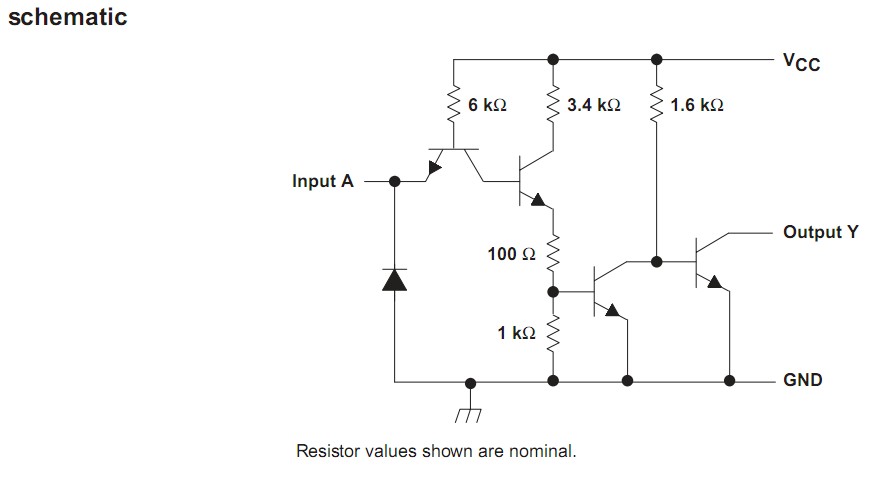

SN7407N schematic diagram
