Product Summary

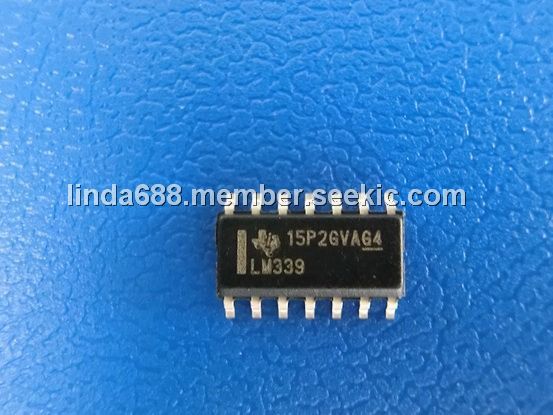

THe LM339DR is a quad differential comparator. It consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and V CC is at least 1.5 V more positive than the input common-mode voltage. THe LM339DR is characterized for operation from 0℃ to 70℃. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Parametrics
LM339DR absolute maximum ratings: (1)Supply voltage:36 V; (2)Differential input voltage:±36 V; (3)Input voltage range (either input):-0.3V to 36V; (4)Output voltage:36 V; (5)Output current:20 mA; (6)Duration of output short circuit to ground: Unlimited; (7)Package thermal impedance:86℃/W; (8)Operating virtual junction temperature:150℃; (9)Storage temperature range:-65℃ to 150℃.
Features
LM339DR features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage:Max Rating2 V to 36 V, Tested to 30 V:Non-V Devices, Tested to 32 V:V-Suffix Devices; (3)Low Supply-Current Drain Independent of; (4)Supply Voltage:0.8 mA Typ; (5)Low Input Bias Current:25 nA Typ; (6)Low Input Offset Voltage:2 mV Typ; (7)Common-Mode Input Voltage Range Includes Ground; (8)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage:± 36 V; (9)Low Output Saturation Voltage; (10)Output Compatible With TTL, MOS, and CMOS.
Diagrams
