Product Summary

The ADS1240E is a precision, wide dynamic range, delta-sigma, Analog-to-Digital (A/D) converter with 24-bit resolution operating from 2.7V to 5.25V power supplies. The ADS1240E provides up to 24 bits of no missing code performance and effective resolution of 21 bits. It is designed for high-resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation. The applications of the ADS1240E are industrial process control, weigh scales, liquid/gas chromatography, blood analysis, smart transmitters, portable instrumentation.

Parametrics

ADS1240E absolute maximum ratings: (1)AVDD to DGND:–0.3V to +6V; (2)DVDD to DGND:–0.3V to +6V; (3)Input Current:100mA, Momentary; (4)DGND to AGND:–0.3V to 0.3V; (5)Input Current:10mA, Continuous; (6)AIN:AGND –0.5V to AVDD + 0.5V; (7)Digital Input Voltage to DGND:–0.3V to DVDD + 0.3V; (8)Digital Output Voltage to DGND:–0.3V to DVDD + 0.3V; (9)Maximum Junction Temperature: +150℃; (10)Operating Temperature Range:–40℃ to +85℃; (11)Storage Temperature Range:–60℃ to +150℃; (12)Lead Temperature (soldering, 10s):+300℃.

Features

ADS1240E features: (1)24 bits no missing codes; (2)simultaneous 50Hz and 60Hz rejection(–90dB minimum); (3)0.0015% INL; (4)21 bits effective resolution(PGA = 1), 19 bits (PGA = 128); (5)PGA gains from 1 to 128; (6)single cycle settling; (7)programmable data output rates; (8)external differential reference of 0.1V to 5V; (9)on-chip calibration; (10)SPI compatible; (11)2.7V to 5.25V supply range; (12)600μW power consumption; (13)up to eight input channels; (14)up to eight data I/O.

Diagrams

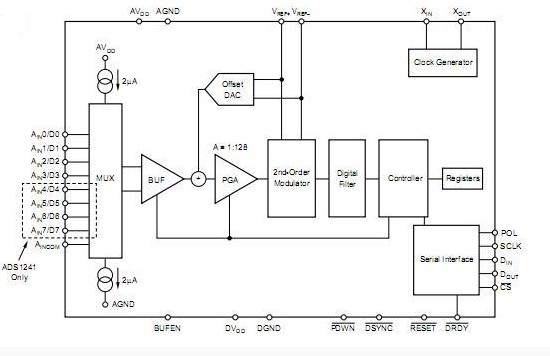

ADS1240E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADS1240E
ADS1240E

Texas Instruments

ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter

Data Sheet

0-1: $6.21
1-10: $5.58
10-25: $4.97
25-50: $4.69
ADS1240E/1K
ADS1240E/1K

Texas Instruments

ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter

Data Sheet

0-790: $2.61
790-1000: $2.56
ADS1240E/1KG4
ADS1240E/1KG4

Texas Instruments

ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter

Data Sheet

0-790: $2.61
790-1000: $2.56
ADS1240EG4
ADS1240EG4

Texas Instruments

ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter

Data Sheet

0-1: $6.21
1-10: $5.58
10-25: $4.97
25-50: $4.69
