Product Summary
The TDA8174AW is the amonolithicintegrated circuit. It is a full performance and very efficient vertical deflection circuit intended for direct drive of a TV picture tube in Color and B & Wtelevision as well as in Monitor and Data displays.
Parametrics
TDA8174AW absolute maximum ratings: (1)Supply Voltage: 35 V; (2)Flyback Peak Voltage: 65 V; (3)Trigger Input Voltage: 20 V; (4)Amplifier Input Voltage: GND, VS V; (5)Output Peak-to-peak Current (non repetitive t = 2ms): 6 A; (6)Output Peak-to-peak Current t > 10μs: 4A; (7)Pin 11 DC Current at V1 <V10: 100 mA; (8)Pin 11 Peak-to-peak Current @ tfly < 1.5ms: 3 A; (9)Total Power Dissipation@ Ttab =60℃: 30W; (10)Storage Temperature: -40 to +150℃; (11)Junction Temperature: 0 to +150℃; (12)Ambient Temperature: 0 to +70℃.
Features
TDA8174AW features: (1)Ramp generator; (2)Independent amplitube justment; (3)Buffer stage; (4)Poweramplifier; (5)Flybackgenerator; (6)Thermal protection; (7)Internal reference voltage decoupling.

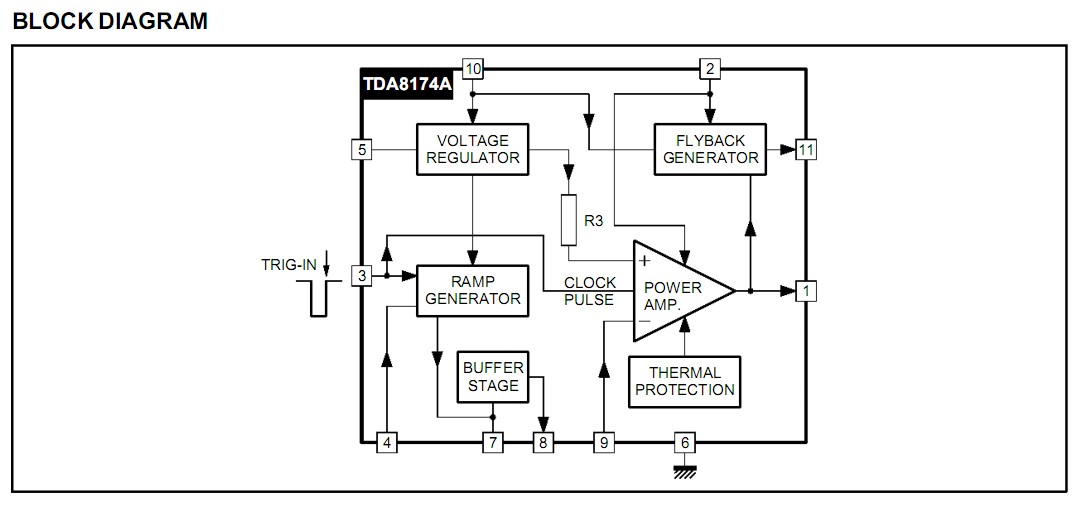

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() TDA8174AW |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
