Product Summary

The TDA9981BHL/15 is a HDMI transmitter (which also supports DVI) that enables a 3 × 8-bit RGB or YCbCr video stream (with a pixel rate up to 150 MHz for the TDA9981BHL/15 version), up to 4 I2S-bus audio streams (with an audio sampling rate up to 192 kHz) and the additional information required by all the HDMI 1.2a standards. The applications of the TDA9981BHL/15 include DVD players and recorders, Set-Top Box (STB), AV receivers and amplifiers (repeater), Camcorders, Digital still cameras, Media players, PVRs, Media centers PCs, graphics add-in boards, notebook PCs and Switches.

Parametrics

TDA9981BHL/15 absolute maximum ratings: (1)VDD(3V3), supply voltage (3.3 V): -0.5 to +4.6 V; (2)VDD(1V8), supply voltage (1.8 V): -0.5 to +2.5 V; (3)△VDD, supply voltage difference: -0.5to +0.5 V; (4)Tstg, storage temperature: -55 to +150℃; (5)Tamb, ambient temperature: 0 to 85℃; (6)Tj, junction temperature: 125℃; (7)Vesd electrostatic discharge voltage HBM: -2000 to +2000 V.

Features

TDA9981BHL/15 features: (1)3 × 8-bit video data input bus, CMOS and LV-TTL compatible; (2)Horizontal synchronization, vertical synchronization and Data Enable (DE) inputs or VREF, HREF and FREF could be used for input data synchronization; (3)Pixel rate clock input can be made active on one or both edges (selectable by I2C-bus); (4)The TDA9981B has 4 I2S-bus audio input channels and 1 S/PDIF channel; audio sampling rate up to 192 kHz; (5)250 MHz to 1.50 GHz HDMI transmitter operation; (6)Programmable input formatter and upsampler/interpolator allows input of any of the 4:4:4, 4:2:2 semi-planar, 4:2:2 ITU656 and ITU656-like formats; (7)Programmable color space converter; (8)Controllable via I2C-bus; (9)Low power dissipation; (10)1.8 V and 3.3 V power supplies; (11)Power-down mode; (12)Hard reset.

Diagrams

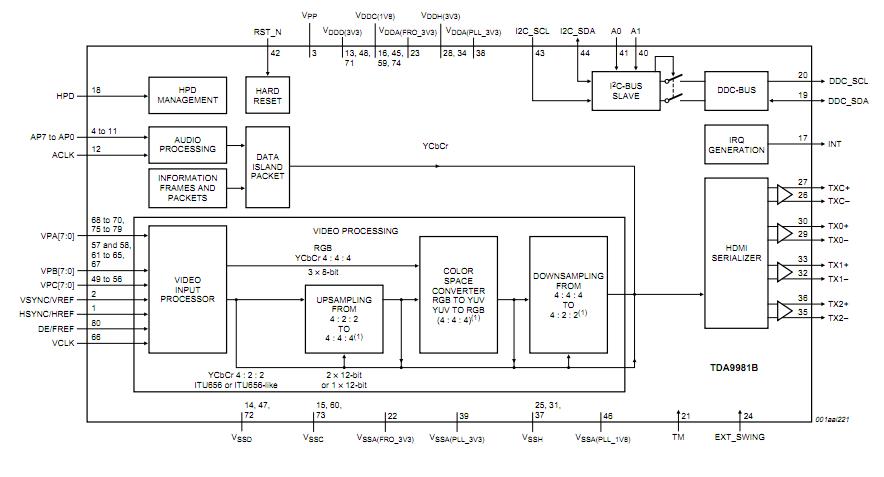

TDA9981BHL/15 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

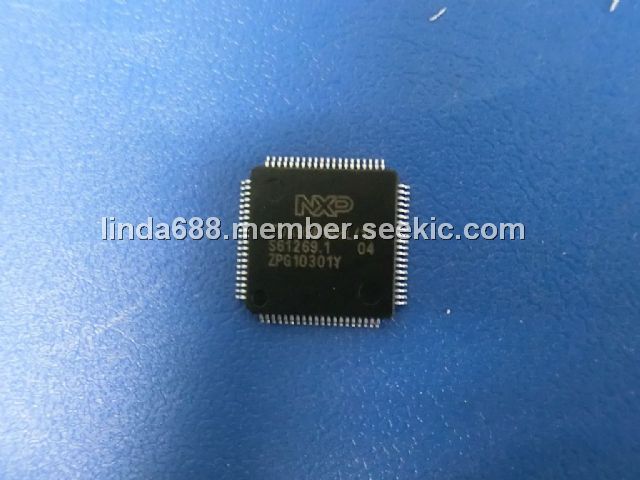

TDA9981BHL/15/C1,5
TDA9981BHL/15/C1,5
NXP Semiconductors
Video ICs IC HDMI TX 150MHZ
Data Sheet
0-605: $1.60
605-1000: $1.28
1000-3000: $1.23
3000-6000: $1.19
TDA9981BHL/15/C1:5
TDA9981BHL/15/C1:5
NXP Semiconductors
Video ICs IC HDMI TX 150MHZ
Data Sheet
0-1: $3.84
1-25: $2.98
25-100: $1.97
100-250: $1.88
TDA9981BHL/15/C1;5
TDA9981BHL/15/C1;5
NXP Semiconductors
Video ICs IC HDMI TX 150MHZ
Data Sheet
0-325: $1.78
325-500: $1.60
500-1000: $1.28
1000-3000: $1.23
