Product Summary

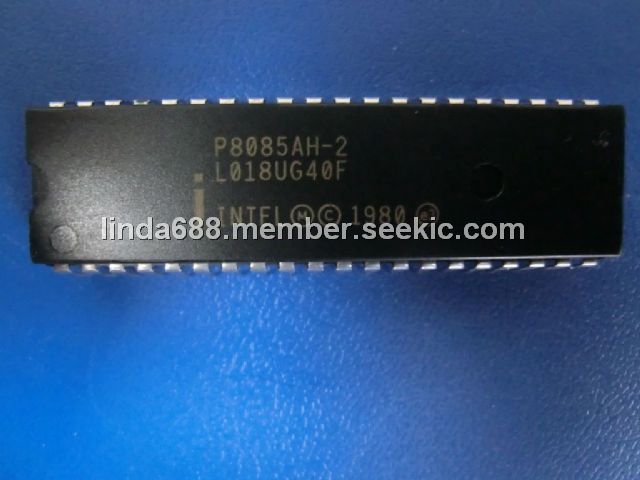

The P8085AH-2 is a new generation, complete 8-bit parallel central processing unit (CPU). Its instruction set is 100% software compatible with the 8080A microprocessor. Specifically, the P8085AH-2 incorporates all of the features that the 8224 (clock generator) and 8228 (system controller) provided for the 8080A. The device is a faster version of the 8085A. The P8085AH-2 is a 3-MHz CPU with 10% supply tolerances and lower power consumption. The P8085AH-2 uses a multiplexed data bus. The address is split between the 8-bit address bus and the 8-bit data bus.
Parametrics
P8085AH-2 absolute maximum ratings: (1)Storage Temperature: - 65 to + 150℃ ; (2)Voltage on Any Pin With Respect to Ground: -0.5 to + 7 V; (3)Power Dissipation: 1.5 W.
Features
P8085AH-2 features: (1)SMD/DESC qualified; (2)3- and 5-MHz selections available; (3)On-chip system controller; advanced cycle status information available for large system control; (4)Four vectored interrupts (one is non-maskable); (5)On-chip clock generator (with external crystal, LC or R/C network); (6)Serial-in/serial-out port; (7)Decimal, binary, and double-precision arithmetic; (8)Direct addressing capability to 64K bytes of memory; (9)0.8 us instruction cycle (8085A-2); (10)100% software-compatible with 8080A; (11)Single +5 V power supply.

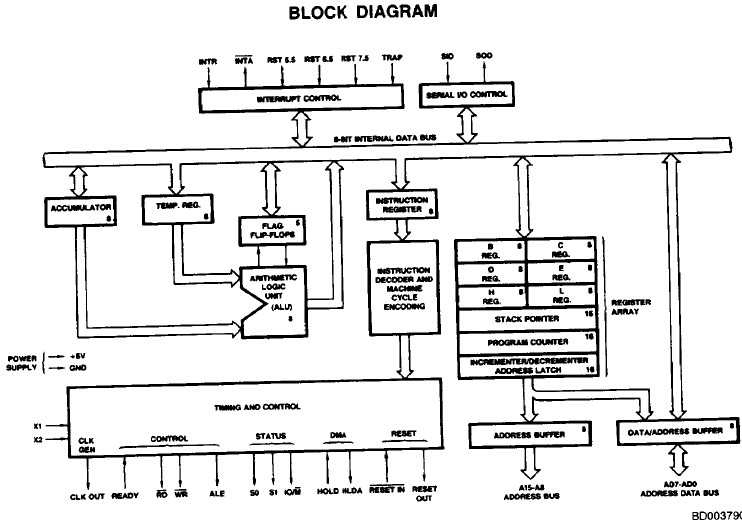

Diagrams
