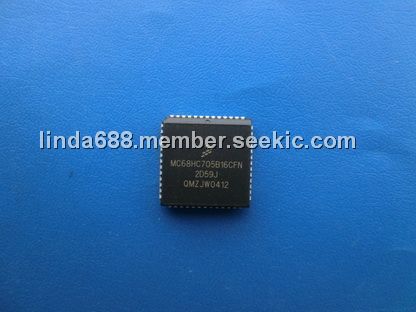

MC68HC705B16CFN

8-bit single chip microcomputer, –0.5 to +7.0 V, 45mA, PLCC52, MC68HC705B16CFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~100,000.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~100,000.00

PartNumber:: MC68HC705B16CFN

Brand:: Motorola, Inc - Motorola | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Miky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:MC68HC705B16CFN
US $1.00 - 100,000.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC68HC705B16CFN is an 8-bit, low-cost single chip microcomputer (MCU). The MC68HC705B16CFN contains an on-chip oscillator, CPU, RAM, ROM, EEPROM, A/D converter, pulse length modulated outputs, I/O, serial communications interface, programmable timer system and watchdog. The fully static design allows operation at frequencies down to dc to further reduce the already low power consumption to a few micro-amps.

Parametrics

MC68HC705B16CFN absolute maximum ratings: (1)Supply voltage, VDD: – 0.5 to +7.0 V; (2)Input voltage (Except VPP1) VIN: VSS – 0.5 to VDD + 0.5 V; (3)Input voltage, Self-check mode (IRQ pin only), VIN: VSS – 0.5 to 2VDD + 0.5 V; (4)Operating temperature range, TA: –40 to +85℃; (5)Storage temperature range, TSTG: – 65 to +150℃; (6)Current drain per pin (excluding VDD and VSS), Source, ID: 25mA; Sink: 45mA.

Features

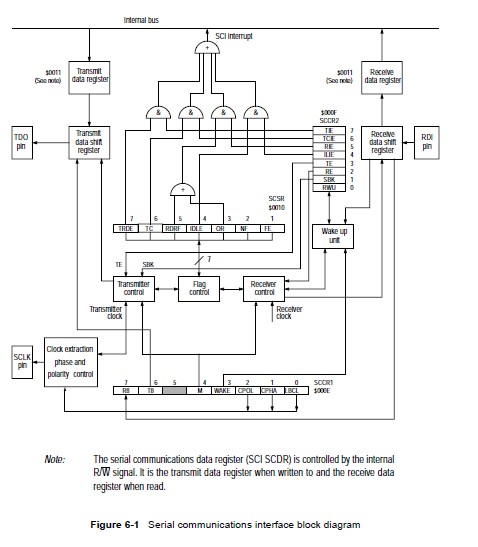

MC68HC705B16CFN features: (1)Standard NRZ (mark/space) format; (2)Advanced error detection method with noise detection for noise duration of up to 1/16th bit time; (3)Full-duplex operation (simultaneous transmit and receive); (4)32 software selectable baud rates; (5)Different baud rates for transmit and receive; for each transmit baud rate, 8 possible receive baud rates; (6)Software selectable word length (eight or nine bits); (7)Separate transmitter and receiver enable bits; (8)Capable of being interrupt driven; (9)Transmitter clocks available without altering the regular transmitter or receiver functions; (10)Four separate enable bits for interrupt control Receiver wake-up function (idle line or address bit); (11)Idle line detection; (12)Framing error detection; (13)Noise detection; (14)Overrun detection; (15)Receiver data register full flag Transmit data register empty flag; (16)Transmit complete flag; (17)Send break.
