Product Summary
The IDT71V424S15YGI is a 4,194,304-bit high-speed Static RAM organized as 512K x 8. It is fabricated using IDT’s high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs. The IDT71V424S15YGI has an output enable pin which operates as fast as 5ns, with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71V424S15YGI are TTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation. The IDT71V424S15YGI is packaged in a 36-pin, 400 mil Plastic SOJ and 44-pin, 400 mil TSOP.
Parametrics
IDT71V424S15YGI absolute maximum ratings: (1)VDD, Supply Voltage Relative to VSS: -0.5 to +4.6 V; (2)VIN, VOUT, Terminal Voltage Relative to VSS: -0.5 to VDD+0.5 V; (3)TBIAS, Temperature Under Bias: -55 to +125℃; (4)TSTG, Storage Temperature: -55 to +125℃; (5)PT, Power Dissipation: 1 W; (6)IOUT, DC Output Current: 50 mA.
Features
IDT71V424S15YGI features: (1)512K x 8 advanced high-speed CMOS Static RAM; (2)JEDEC Center Power / GND pinout for reduced noise; (3)Equal access and cycle times: Commercial and Industrial: 10/12/15ns; (4)Single 3.3V power supply; (5)One Chip Select plus one Output Enable pin; (6)Bidirectional data inputs and outputs directly TTL-compatible; (7)Available in 36-pin, 400 mil plastic SOJ package and 44-pin, 400 mil TSOP.

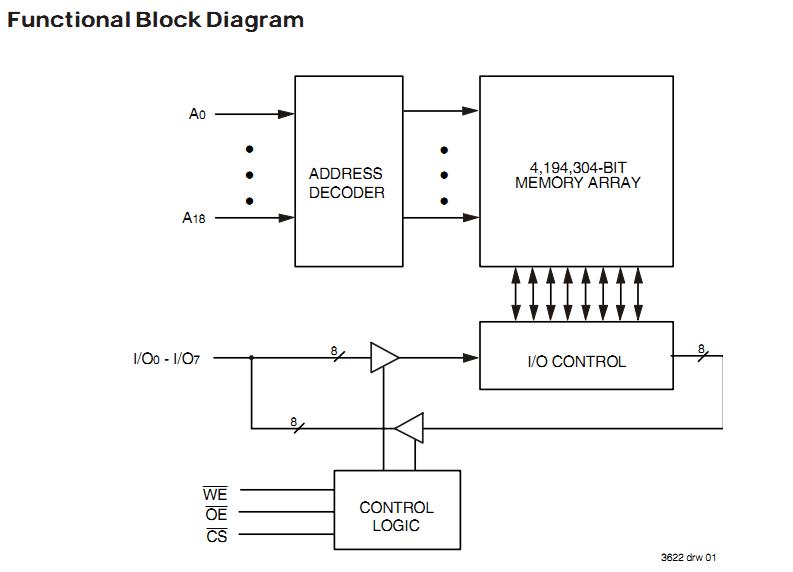

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

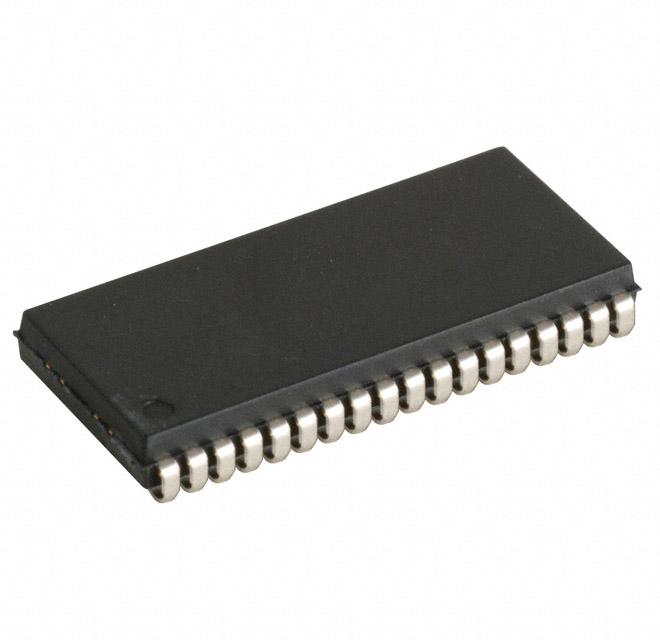

 IDT71V424S15YGI |
|
IC SRAM 4MBIT 15NS 36SOJ |
Data Sheet |
|
|
||||||||||||||||||||||
|
IDT71V424S15YGI8 |
|
IC SRAM 4MBIT 15NS 36SOJ |
Data Sheet |
|
|
||||||||||||||||||||||
