Product Summary

The SE2528L-R is a 2.4 GHz power amplifier designed for use in the 2.4 GHz ISM band for wireless LAN applications. The device incorporates two selectable power detectors for closed loop monitoring of the output power. The SE2528L-R also offers a high power mode by operating at 5 V. This provides an extra 2 dB of improved EVM performance. The SE2528L-R includes a digital enable control for device on/off control. The device is pin for pin compatible to SiGes SE2525L, allowing both devices to share the same application board with only a few component changes required. This provides users with both a high and low power solution without changing the layout. The SE2528L-R temperature compensated power detector has two selectable power detectors slopes, positive and negative. This allows easy use with multiple chipsets. The detector is also highly immune to mismatch at its output with less than 1.5 dB of variation with a 2:1 mismatch.

Features

SE2528L-R features: (1)Single 3.3 V Supply Operation: 21 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps; 24 dBm, ACPR < -32 dBc, 802.11b; (2)Dual Supply Operation: 23 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps; 25 dBm, ACPR < -32 dBc, 802.11b; (3)33 dB Gain; (4)Pin for pin compatible to the SE2525L; (5)Selectable Power Detector Slope for use with multiple chipsets (Negative and Positive); (6)Integrated power amplifier enable pin (VEN); (7)Lead Free package, 16 pin 4 mm x 4 mm x 0.9 mm QFN.

Diagrams

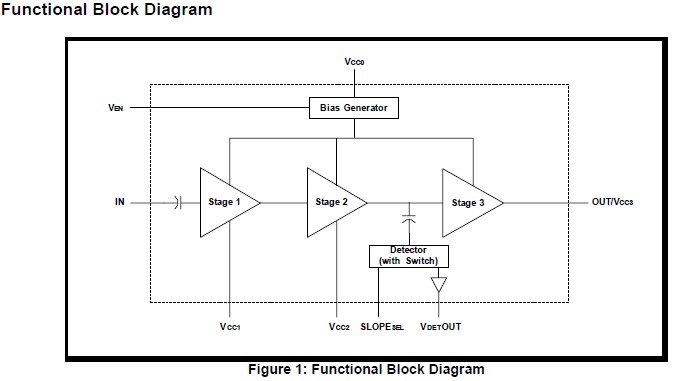

SE2528L-R functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SE2528L-R
SE2528L-R
Skyworks Solutions, Inc.
RF Amplifier 2.4GHz Gain 33 dB 3.3Volt -40C +85C
Data Sheet
0-1: $0.37
1-50: $0.37
50-100: $0.36
100-500: $0.35
