Product Summary

The APT47N60BC3 is a kind of super junction MOSFET.

Parametrics

APT47N60BC3 absolute maximum ratings: (1)Drain-Source Voltage: 600V; (2)Continuous Drain Current @ TC = 25℃: 47A; (3)Pulsed Drain Current: 141A; (4)Gate-Source Voltage Continuous: ±20V; (5)Gate-Source Voltage Transient: ±30V; (6)Total Power Dissipation @ TC = 25℃: 417W; (7)Linear Derating Factor: 3.33W/℃; (8)Operating and Storage Junction Temperature Range: -55 to 150℃; (9)Lead Temperature:260℃; (10)Drain-Source Voltage slope: 50 V/ns.

Features

APT47N60BC3 features: (1)Ultra low RDS(ON); (2); (3)Ultra Low Gate Charge, Qg; (4)Avalanche Energy Rated; (5)TO-247 or Surface Mount D3PAK Package.

Diagrams

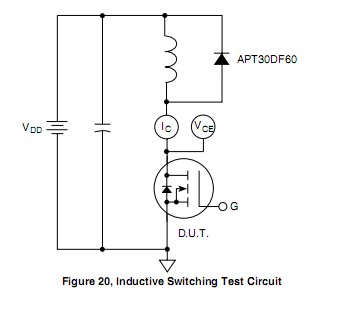

APT47N60BC3 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APT47N60BC3G
APT47N60BC3G

MOSFET N-CH 600V 47A TO-247
Data Sheet
0-1: $8.69
1-10: $7.90
10-100: $6.71
100-250: $6.12
250-500: $5.73
500-1000: $5.25
1000-2500: $5.04
2500-5000: $4.90
5000-10000: $4.74
