Product Summary

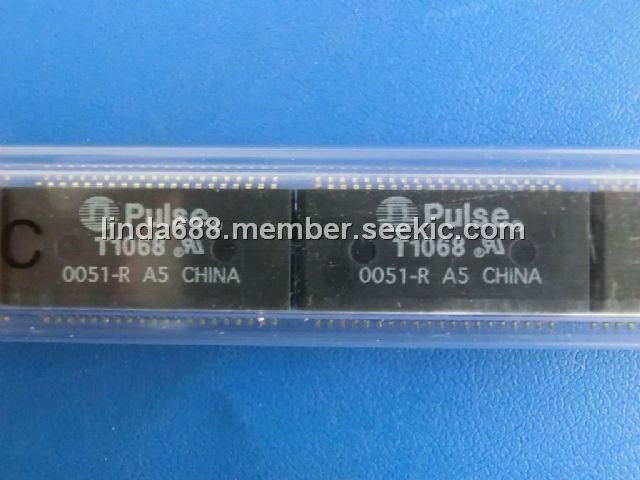

The T1068NL is a Transformer.

Parametrics

T1068NL absolute maximum ratings: (1)turns ratio: TX: 1:2CT; RX: 1:1CT; (2)OCL at 25℃, TX: 1.2mH min; RX: 1.2mH min; (3)LL: TX: 0.6μH max; RX: 0.6μH max; (4)Cww: TX: 35pF max; RX: 35pF max.

Features

T1068NL features: (1)RoHS peak reflow temperature rating 245℃; (2)Models matched to leading quad and dual T1/E1/CEPT/ISDN-PRI transceivers; (3)Crosstalk: -65 dB or better; (4)UL1950 recognized (some parts pending approval); (5)RoHS compliant versions available upon request.

Diagrams

T1068 schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T1068
T1068

Pulse

Transformers Audio & Signal T1/E1 XFMR; 4 PORT

Data Sheet

0-90: $3.35
90-100: $2.48
100-500: $2.20
500-1000: $2.05
T1068NL
T1068NL

Pulse

Transformers Audio & Signal XFMR QUAD

Data Sheet

0-1: $4.29
1-10: $3.82
10-100: $3.05
100-500: $2.62
T1068NLT
T1068NLT

Pulse

Transformers Audio & Signal T1/E1/CEPT/ISDN/-PRI

Data Sheet

0-112: $4.28
112-500: $3.82
500-1000: $3.56
T1068T
T1068T

Pulse

Transformers Audio & Signal T1/E1 XFMR; 4 PORT

Data Sheet

0-160: $2.48
160-250: $2.48
250-500: $2.20
500-1000: $2.05
