HD64F2633TE28V

microcomputer, QFP, –0.3 to +4.3 V, General-register machine, Two CPU operating modes

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1,000,000.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1,000,000.00

PartNumber:: HD64F2633TE28V

Brand:: Hitachi Ltd - Hitachi | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Miky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:HD64F2633TE28V
US $1.00 - 1,000,000.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

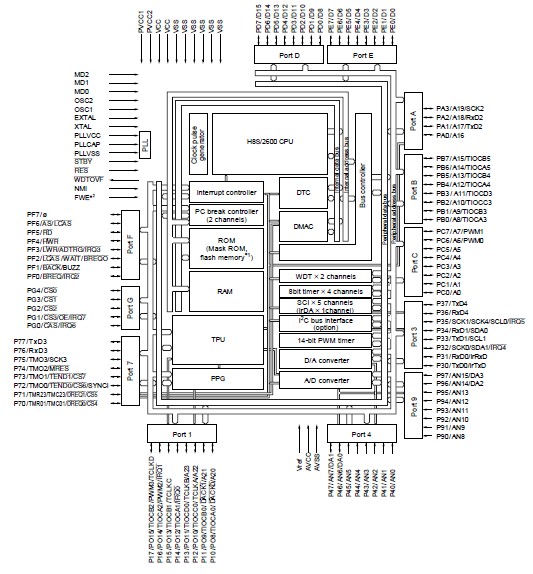

The HD64F2633TE28V is a microcomputer. On-chip peripheral functions required for system configuration include DMA controller(DMAC), data transfer controller (DTC)*2 bus masters, ROM and RAM memory, a 16-bit timerpulse unit (TPU), programmable pulse generator (PPG), 8-bit timer, 14-bit PWM timer(PWM), watchdog timer (WDT), serial communication interface (SCI, IrDA), A/D converter, D/A converter*2, and I/O ports. The HD64F2633TE28V is also possible to incorporate an on-chip PC bus interface (IIC) as an option.

Parametrics

HD64F2633TE28V absolute maximum ratings: (1)Power supply voltage VCC: –0.3 to +4.3 V; PVCC1,2: –0.3 to +7.0 V; (2)Input voltage (XTAL, EXTAL, OSC1, OSC2)Vin: –0.3 to VCC +0.3 V; (3)Input voltage (ports 4 and 9) Vin: –0.3 to AVCC +0.3 V; (4)Input voltage (except XTAL, EXTAL, OSC1, OSC2, ports 4 and 9)Vin: –0.3 to PVCC +0.3 V; (5)Reference voltage Vref: –0.3 to AVCC +0.3 V; (6)Analog power supply voltage AVCC: –0.3 to +7.0 V; (7)Analog input voltage VAN: –0.3 to AVCC +0.3 V; (8)Operating temperature Topr Regular specifications: –20 to +75 ℃; Wide-range specifications: –40 to +85 ℃; (9)Storage temperature Tstg: –55 to +125 ℃.

Features

HD64F2633TE28V features: (1)General-register machine; (2)High-speed operation suitable for realtime control; (3)Instruction set suitable for high-speed operation; (4)Two CPU operating modes; (5)Choice of 8-bit or 16-bit access space for each area; (6)2-state or 3-state access space can be designated for each area; (7)Number of program wait states can be set for each area; (8)Burst ROM directly connectable; (9)External bus release function.
