Product Summary

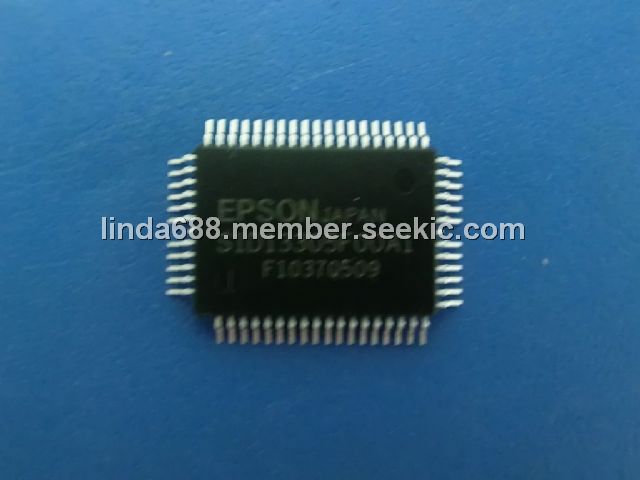

The S1D13305F00A1 is a controller IC that can display text and graphics on LCD panel. The device can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. The S1D13305F00A1 stores text, character codes and bit-mapped graphics data in external frame buffer memory. The S1D13305F00A1 has an internal character generator with 160, 5 * 7 pixel characters in internal mask ROM. The character generators support up to 64, 8 * 16 pixel characters in external character generator RAM and up to 256, 8 * 16 pixel characters in external character generator ROM.
Parametrics
S1D13305F00A1 absolute maximum ratings: (1)Supply voltage range: –0.3V to 7.0V; (2)Input voltage range: –0.3V to VDD + 0.3V; (3)Power dissipation: 300 mW; (4)Operating temperature range: –20℃ to 75℃; (5)Storage temperature range: –65℃ to 150℃; (6)Soldering temperature (10 seconds): 260℃.
Features
S1D13305F00A1 features: (1)Text, graphics and combined text/graphics display modes; (2)Three overlapping screens in graphics mode; (3)Up to 640 × 256 pixel LCD panel display resolution; (4)Programmable cursor control; (5)Smooth horizontal and vertical scrolling of all or part of the display; (6)1/2-duty to 1/256-duty LCD drive; (7)Up to 640 * 256 pixel LCD panel display resolution memory; (8)160, 5 * 7 pixel characters in internal mask-program-med character generator ROM; (9)Up to 64, 8 * 16 pixel characters in external character generator RAM; (10)Up to 256, 8 * 16 pixel characters in external character generator ROM; (11)6800 and 8080 family microprocessor interfaces; (12)Low power consumption-3.5 mA operating current (VDD = 3.5V), 0.05 μA standby current.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S1D13305F00A1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
S1D13305 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S1D13305F00A1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S1D13305F00A2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S1D13305F00B1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S1D13305F00B2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S1D13502F00B200 |
Epson Electronics America |
LCD Drivers LCD CONTROLLER |
Data Sheet |
Negotiable |
|
||||
