MAX1896EUT-T

1.4MHz, SOT23, Current-Mode Step-Up DC-DC Converter, 2.6V to 5.5V Input Range

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~100,000,000.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~100,000,000.00

PartNumber:: MAX1896EUT-T

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Miky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-03

From Other Seller

Part Number:MAX1896EUT-T
US $1.00 - 100,000,000.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

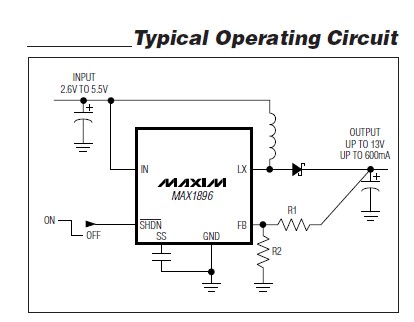

The MAX1896EUT-T step-up DC-DC converter incorporates high-performance current-mode, fixed-frequency, pulse-width modulation (PWM) circuitry and an internal 0.7Ω N-channel MOSFET to provide a highly efficient regulator with fast response. High switching frequency (1.4MHz) allows fast loop response and easy filtering with small components. The MAX1896EUT-T can produce an output voltage as high as 13V from an input as low as 2.6V. Soft-start is programmable with an external capacitor, which sets the input current ramp rate. In shutdown mode, current consumption is reduced to 0.01μA. The MAX1896EUT-T is available in a space-saving 6-pin SOT23 package. The ultra-small package and high switching frequency allow cost and space-efficient implementations.

Parametrics

MAX1896EUT-T absolute maximum ratings: (1)LX to GND: -0.3V to +14V; (2)IN, SHDN, FB to GND: -0.3V to +6V; (3)SS to GND: -0.3V to (VIN + 0.3V); (4)RMS LX Pin Current: 0.6A; (5)Continuous Power Dissipation (TA = +70℃), 6-Pin SOT23 (derate 9.1mW/℃ above +70℃): 727mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

MAX1896EUT-T features: (1)>90% Efficiency; (2)Adjustable Output Up to 13V; (3)Guaranteed 12V/120mA Output from 5V Input; (4)2.6V to 5.5V Input Range; (5)LT1613 Pin Compatible; (6)0.01uA Shutdown Current; (7)Programmable Soft-Start; (8)Space-Saving 6-Pin SOT23 Package.
