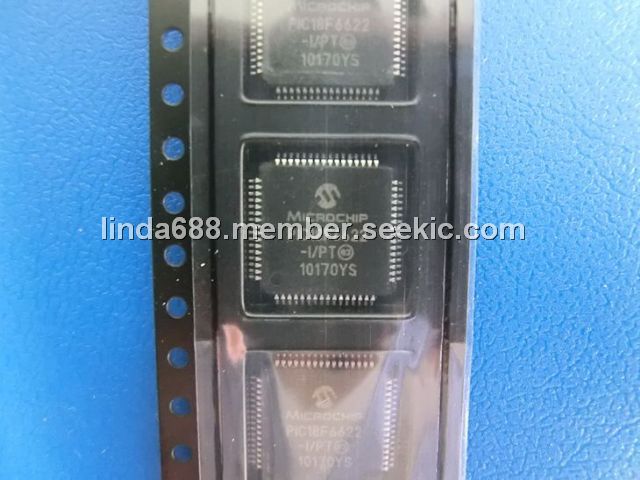

PIC18F6622-I

32KX16, 64TQFP, enhanced flash microcontroller, 8bit, A/D,nano Watt technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1,000,000.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1,000,000.00

PartNumber:: PIC18F6622-I

Brand:: Microchip Technology - Microchip | Pack: TQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Miky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-30

From Other Seller

Part Number:PIC18F6622-I
US $1.00 - 1,000,000.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

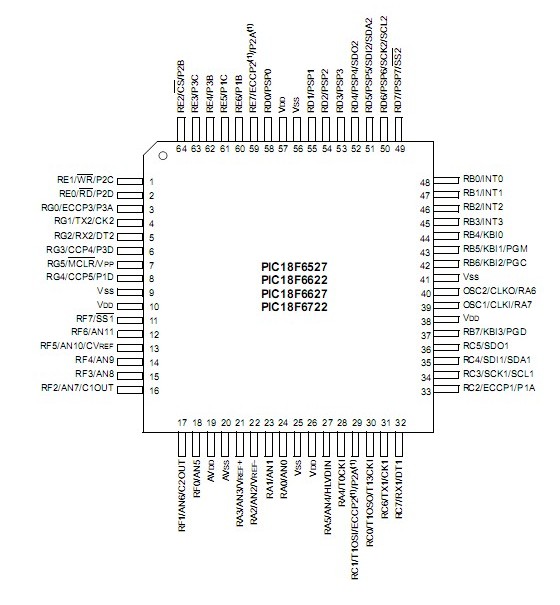

The PIC18F6622-I is a 64-Pin high-performance, 1 Mbit enhanced flash microcontroller with 10-bit A/D and nano Watt technology.

Parametrics

PIC18F6622-I absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS (Note 2): 0V to +13.25V; (6)Total power dissipation (Note 1): 1.0W; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200mA; (14)Maximum current sourced by all ports: 200 mA.

Features

PIC18F6622-I features: (1)C Compiler Optimized Architecture; (2)100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical; (3)1,000,000 Erase/Write Cycle Data EEPROM Memory Typical; (4)Flash/Data EEPROM Retention: 100 Years Typical; (5)Self-Programmable under Software Control; (6)Priority Levels for Interrupts; (7)8 x 8 Single-Cycle Hardware Multiplier; (8)Extended Watchdog Timer (WDT): Programmable period from 4 ms to 131s; (9)Single-Supply 5V In-Circuit Serial Programming: (ICSP) via Two Pins; (10)In-Circuit Debug (ICD) via Two Pins; (11)Wide Operating Voltage Range: 2.0V to 5.5V; (12)Programmable Brown-out Reset (BOR) with Software Enable Option.
