Product Summary

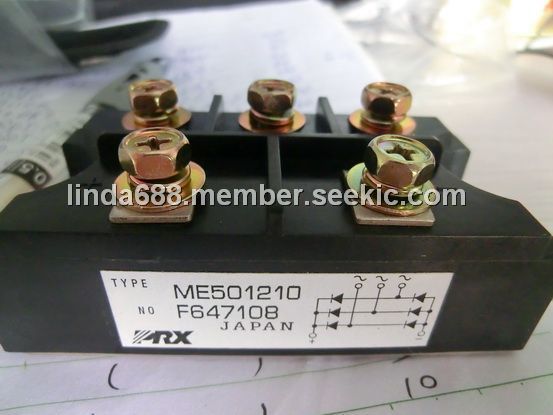

The ME50120 is the Powerex three-phase diode Bridge module which is designed for use in three-phase bridge application. The module is isolated consisting of six rectifier diodes.
Parametrics
ME50120 absolute maximum ratings: (1)Peak Reverse Blocking Voltage: 1200 Volts; (2)Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms: 1350 Volts; (3)DC Reverse Blocking Voltage VR(DC): 960 Volts; (4)DC Output Current, TC = 103℃: 60 Amperes; (5)Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz): 600 Amperes; (6)Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz): 545 Amperes; (7)Storage Temperature TSTG: -40 to 125℃; (8)Operating Temperature Tj: -40 to 150℃.
Features
ME50120 features: (1)Isolated Mounting; (2)Planar Chips.

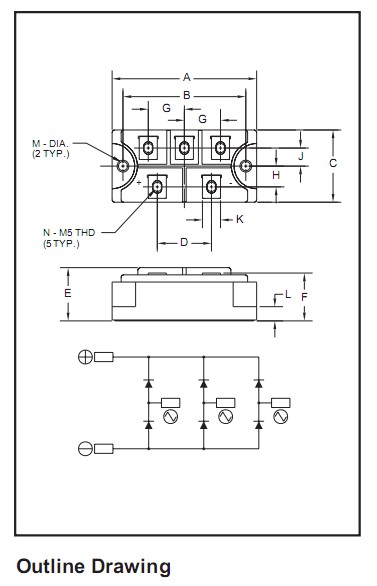

Diagrams
