Product Summary

The AD630ARZ is a high precision balanced modulator which combines a flexible commutating architecture with the accuracy and temperature stability afforded by laser wafer trimmed thin-film resistors. Its signal processing applications include balanced modulation and demodulation, synchronous detection, phase detection, quadrature detection, phase sensitive detection, lock-in amplification and square wave multiplication.

Parametrics

AD630ARZ absolute maximum ratings: (1)Supply Voltage: ± 18 V; (2)Internal Power Dissipation: 600 mW; (3)Output Short Circuit to Ground: Indefinite; (4)Storage Temperature, Ceramic Package: –65℃ to +150℃; (5)Storage Temperature, Plastic Package: –55℃ to +125℃; (6)Lead Temperature Range (Soldering, 10 sec ): +300℃; (7)Max Junction Temperature: +150℃.

Features

AD630ARZ features: (1)Recovers Signal from +100 dB Noise; (2)2 MHz Channel Bandwidth; (3)45 V/μs Slew Rate; (4)–120 dB Crosstalk @ 1 kHz; (5)Pin Programmable Closed Loop Gains of ±1 and ±2; (6)0.05% Closed Loop Gain Accuracy and Match; (7)100 μV Channel Offset Voltage (AD630BD); (8)350 kHz Full Power Bandwidth; (9)Chips Available.

Diagrams

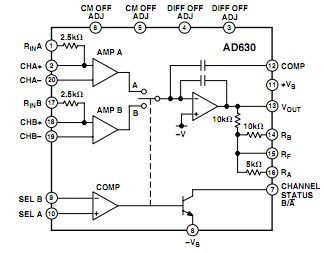

AD630ARZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

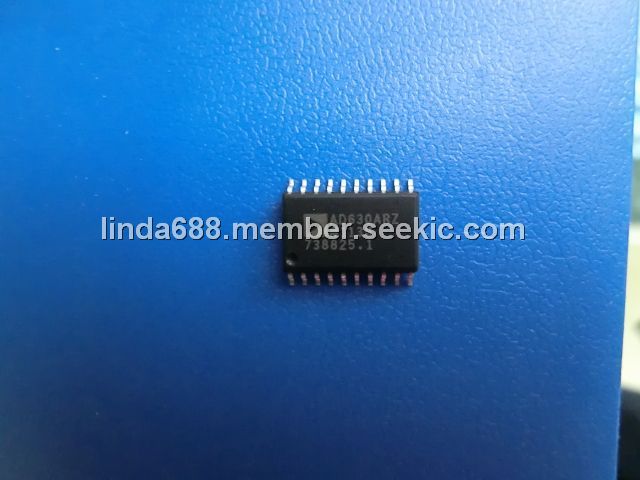

AD630ARZ
AD630ARZ


IC MOD/DEMOD BAL 2MHZ 20-SOIC

Data Sheet

0-1: $12.76
1-10: $11.80
10-100: $10.08
100-250: $9.25
250-500: $8.80
500-1000: $8.50
AD630ARZ-RL
AD630ARZ-RL


IC MOD/DEMOD BAL 2MHZ 20-SOIC

Data Sheet

0-1000: $8.50
