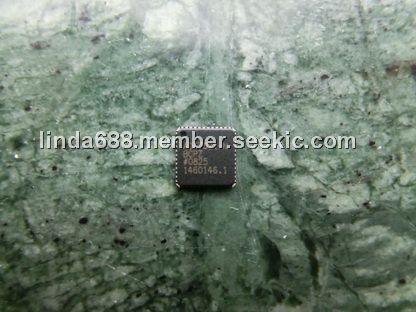

ADF7021-NBCPZ

Product Summary

The ADF7021-NBCPZ is a high performance, low power, narrow-band transceiver based on the ADF7021. The ADF7021-NBCPZ has IF filter bandwidths of 9 kHz, 13.5 kHz, and 18.5 kHz, making it ideally suited to worldwide narrowband standards and particularly those that stipulate 12.5 kHz channel separation. It is designed to operate in the narrow-band, license-free ISM bands and in the licensed bands with frequency ranges of 80 MHz to 650 MHz and 842 MHz to 916 MHz. The part has both Gaussian and raised cosine transmit data filtering options to improve spectral efficiency for narrow-band applications. It is suitable for circuit applications targeted at the Japanese ARIB STD-T67, the European ETSI EN 300 220, the Korean short range device regulations, the Chinese short range device regulations, and the North American FCC Part 15, Part 90, and Part 95 regulatory standards. A complete transceiver can be built using a small number of external discrete components, making the ADF7021-NBCPZ very suitable for price-sensitive and area-sensitive applications.

Parametrics

ADF7021-NBCPZ absolute maximum ratings: (1)VDD to GND1: -0.3 V to +5 V; (2)Analog I/O Voltage to GND: -0.3 V to AVDD + 0.3 V; (3)Digital I/O Voltage to GND: -0.3 V to DVDD + 0.3 V; (4)Operating Temperature Range Industrial (B Version): -40°C to +85°C; (5)Storage Temperature Range: -65°C to +125°C; (6)Maximum Junction Temperature: 150°C; (7)MLF θJA Thermal Impedance: 26°C/W; (8)Reflow Soldering Peak Temperature: 260°C Time at Peak Temperature: 40 sec.

Features

ADF7021-NBCPZ features: (1)Low power, narrow-band transceiver; (2)Frequency bands using dual VCO: 80 MHz to 650 MHz 842 MHz to 916 MHz; (3)Programmable IF filter bandwidths of 9 kHz, 13.5 kHz, and 18.5 kHz; (4)Modulation schemes: 2FSK, 3FSK, 4FSK, MSK; (5)Spectral shaping: Gaussian and raised cosine filtering; (6)Data rates supported: 0.05 kbps to 24 kbps; (7)2.3 V to 3.6 V power supply; (8)Programmable output power .16 dBm to +13 dBm in 63 steps; (9)Automatic power amplifier (PA) ramp control.

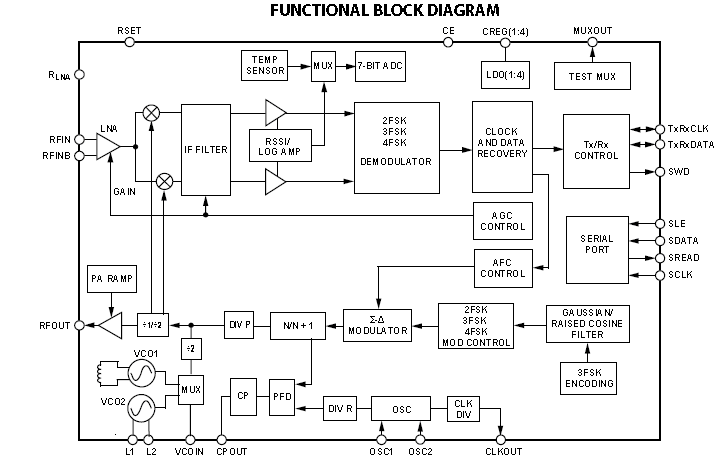

Diagrams
