Product Summary

The IR2432 is a 12-dot LED display driver which is suitable for driving 12 LED level meters.

Parametrics

IR2432 absolute maximum ratings: (1)Supply voltage: 18V; (2)Input voltage: 10V; (3)Reference voltage: MAX 10V MIN 10V; (4)Power dissipation: 1000mW; (5)Operating temperature: -20~+75 ℃; (6)Storage temperature: -25~+125℃.

Features

IR2432 features: (1)LED cuncnl can be set by an external resistor; (2)IR2432 is a linear-scale driver; (3)22-pin dual-in line package.

Diagrams

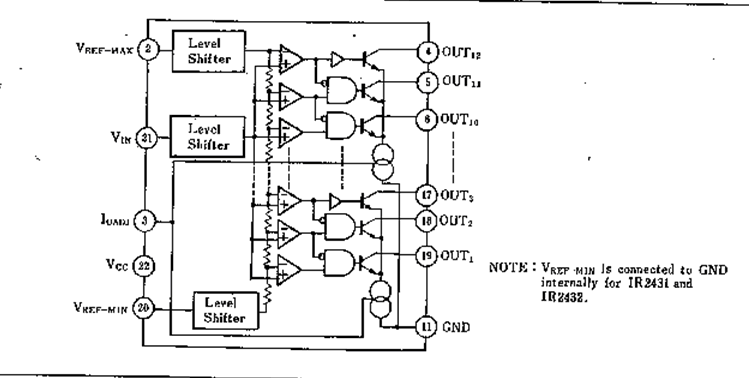

IR2432 block diagram

IR2424-3C
IR2424-3C
