Product Summary

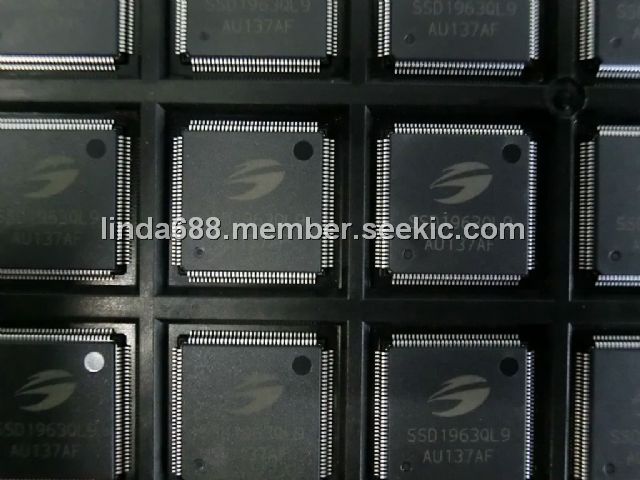

The SSD1963QL9 is a display controller of 1215K byte frame buffer to support up to 864 x 480 x 24bit graphics content. The SSD1963QL9 also equips parallel MCU interfaces in different bus width to receive graphics data and command from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 24 bit-perpixel.
Parametrics
SSD1963QL9 absolute maximum ratings: (1)VDDD, Digital Core power supply: -0.5 to 1.8 V; (2)VDDPLL, PLL power supply: -0.5 to 1.8 V; (3)VDDLCD, LCD Interface power supply: -0.5 to 4.6 V; (4)VDDIO, I/O power supply: -0.5 to 4.6 V; (5)VIN, Input Voltage: -0.5 to 4.6 V; (6)VOUT, Output Voltage: -0.5 to 4.6 V; (7)TSOL, Solder Temperature / Time: 225 for 40 sec max at solder ball ℃; (8)TSTG, Storage temperature: -45 to 125 ℃; (9)TA, Operating temperature: -30 to 85 ℃.
Features
SSD1963QL9 features: (1)Built-in 1215K bytes frame buffer. Support up to 864 x 480 at 24bpp display; (2)Support TFT 18/24-bit generic RGB interface panel; (3)Support 8-bit serial RGB interface; (4)Hardware rotation of 0, 90, 180, 270 degree; (5)Hardware display mirroring; (6)Hardware windowing; (7)Programmable brightness, contrast and saturation control; (8)Dynamic Backlight Control (DBC) via PWM signal.
Diagrams
 |
