Product Summary

The TC2000 is a two channel audio controller that uses Tripath’s proprietary Digital Power Processing (DPPTM) technology. When combined with switching power output stages, the TC2000 allows the implementation of a complete Class-T audio amplifier. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. The applications of the TC2000 include 5.1-Channel DVD, Mini/Micro Component Systems, Home Theater and Stereo applications.

Parametrics

TC2000 absolute maximum ratings: (1)V5, 5V Power Supply: 6 V; (2)Vlogic, Input Logic Level: V5+0.3V; (3)TA, Operating Free-air Temperature Range: -40 to 85℃; (4)TSTORE, Storage Temperature Range: -55 to 150℃; (5)TJMAX, Maximum Junction Temperature: 150℃; (6)ESDHB, ESD Susceptibility – Human Body Model, all pins: 2000 V .

Features

TC2000 features: (1)Class-T Architecture; (2)Audiophile Quality Sound; (3)0.007% THD+N @ 30W 8Ω (with TP2050); (4)High Efficiency; (5)92% @ 60W 8Ω (with TP2050); (6)Dynamic Range >100 dB.

Diagrams

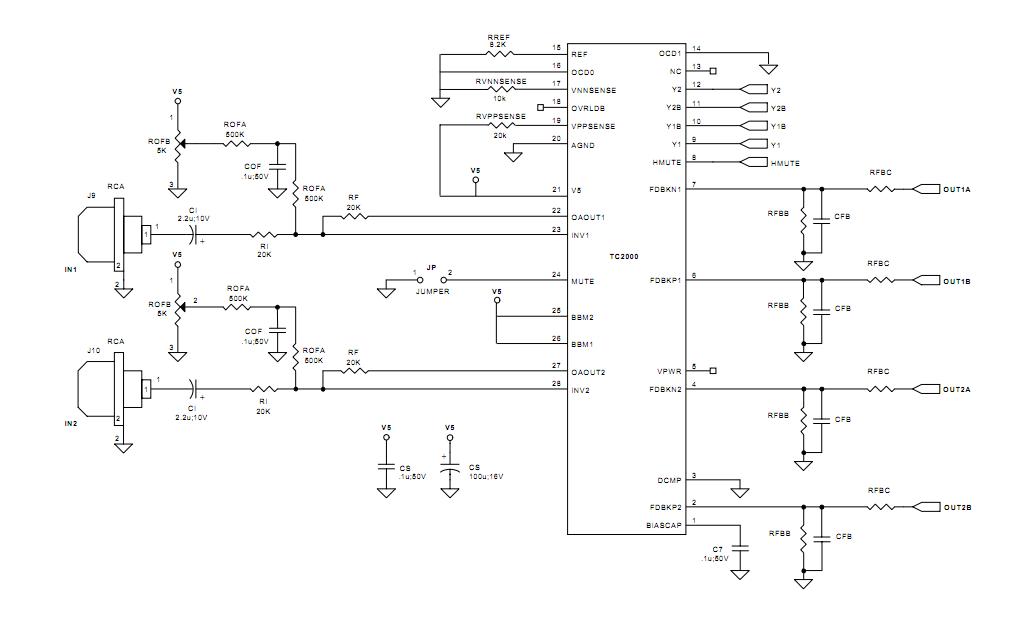

TC2000 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TC2000
TC2000

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TC2000
TC2000

Other


Data Sheet

Negotiable
