Product Summary

The MCP6044I/SL is an operational amplifier from Microchip Technology, Inc. operate with a single supply voltage as low as 1.4 V, while drawing less than 1 µA (max) of quiescent current per amplifier. The MCP6044I/SL is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The applications of the MCP6044I/SL include Toll Booth Tags, Wearable Products, Temperature Measurement and Battery Powered.

Parametrics

MCP6044I/SL absolute maximum ratings: (1)VDD - VSS: 7.0 V; (2)All inputs and outputs: VSS –0.3 V to VDD +0.3 V; (3)Difference Input voltage: |VDD - VSS|; (4)Output Short Circuit Current: continuous; (5)Current at Input Pins:±2 mA; (6)Current at Output and Supply Pins: ±30 mA; (7)Storage temperature: -65 to +150℃; (8)Ambient temp. with power applied: -55 to +125℃; (9)ESD protection on all pins : ≥ 4kV.

Features

MCP6044I/SL features: (1)Low Quiescent Current: 600 nA/Amplifier (typ); (2)Rail-to-Rail Input: -0.3 V to VDD+0.3 V (max); (3)Rail-to-Rail Output: VSS+10 mV to VDD-10 mV (max); (4)Gain Bandwidth Product: 14 kHz (typ); (5)Wide Supply Voltage Range: 1.4 V to 5.5 V (max); (6)Unity Gain Stable; (7)Available in Single, Dual and Quad; (8)Chip Select (CS) with MCP6043; (9)5-lead SOT-23 package.

Diagrams

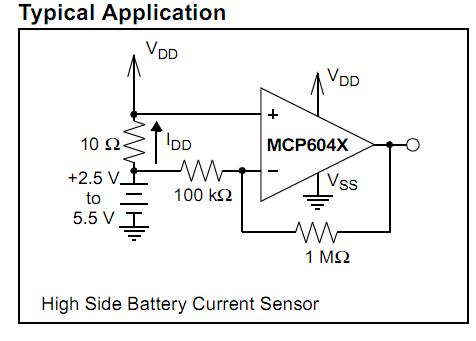

MCP6044I/SL typical applications
