Product Summary

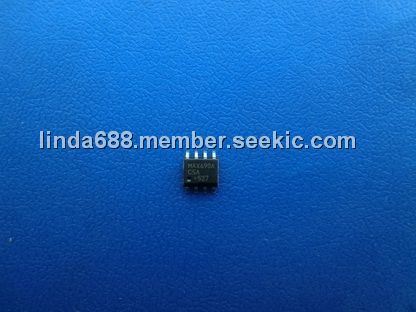

The MAX690ACSA is a Microprocessor Supervisory Circuit. It reduces the complexity and number of components required for power-supply monitoring and battery-control functions in microprocessor (μP) systems. The MAX690ACSA significantly improves system reliability and accuracy compared to separate ICs or discrete components. The applications of the MAX690ACSA include: Battery-Powered Computers and Controllers, Intelligent Instruments, Automotive Systems, Critical μP Power Monitoring.
Parametrics
MAX690ACSA absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to 6.0V, VBATT: -0.3V to 6.0V, All Other Inputs: -0.3V to (VCC + 0.3V); (2)Input Current VCC: 200mA, VBATT: 50mA, GND: 20mA; (3)Output Current VOUT: Short-Circuit Protected for up to 10sec; (4)All Other Outputs: 20mA; (5)Rate of Rise, VCC, VBATT: 100V/μs; (6)Operating Temperature Ranges:: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX690ACSA features: (1)Precision Supply-Voltage Monitor: 4.65V; (2)Reset Time Delay – 200ms; (3)Watchdog Timer – 1.6sec Timeout; (4)Battery-Backup Power Switching; (5)200μA Quiescent Supply Current; (6)50nA Quiescent Supply Current in Battery-Backup Mode; (7)Voltage Monitor for Power-Fail or Low-Battery Warning; (8)Guaranteed RESET Assertion to VCC = 1V; (9)8-Pin SO and DIP Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX690ACSA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX690ACSA+ |
Maxim Integrated Products |
Supervisory Circuits MPU Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX690ACSA+T |
Maxim Integrated Products |
Supervisory Circuits MPU Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX690ACSA-T |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
