Product Summary

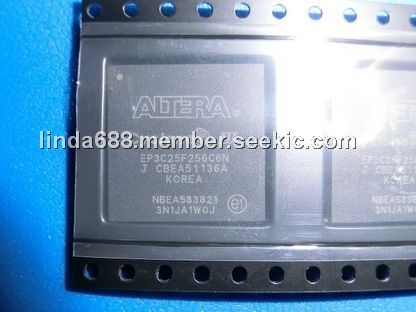

The EP3C25F256C6N is a member of Cyclone III device family, which offers a unique combination of high functionality, low power and low cost. Based on Taiwan Semiconductor Manufacturing Company (TSMC) low-power (LP) process technology, silicon optimizations and software features to minimize power consumption, The EP3C25F256C6N provides the ideal solution for your high-volume, low-power, and cost-sensitive applications.
Parametrics
EP3C25F256C6N absolute maximum ratings: (1)VDD to GND: -0.3 V to +16.5 V; (2)VSS to GND: 0 V to -7 V; (3)VDD to VSS: 16.5 V; (4)VA, VB, VW to GND: VSS to VDD; (5)AX to BX, AX to WX, BX to WX: Intermittent: ±20 mA; Continuous:±5 mA; (6)VLOGIC to GND: 0 V to 7 V; (7)Output Voltage to GND: 0 V to 7 V; (8)Operating Temperature Range: -40℃ to +85℃; (9)Maximum Junction Temperature (TJMAX): 150℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Reflow Soldering: Peak Temperature: 260℃; Time at Peak Temperature: 20 sec to 40 sec.
Features
EP3C25F256C6N features: (1)Lowest power consumption with TSMC low-power process technology and AlteraR power-aware design flow; (2)Hot-socketing operation support; (3)High memory-to-logic and multiplier-to-logic ratio; (4)High I/O count, low-and mid-range density devices for user I/O constrained applications; (5)Four phase-locked loops (PLLs) per device provide robust clock management and synthesis for device clock management, external system clock management, and I/O interfaces; (6)Remote system upgrade without the aid of an external controller; (7)Dedicated cyclical redundancy code checker circuitry to detect single-event upset (SEU) issues; (8)NiosR II embedded processor for Cyclone III device family, offering low cost and custom-fit embedded processing solutions.

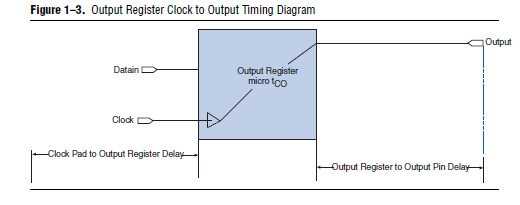

Diagrams
 |
