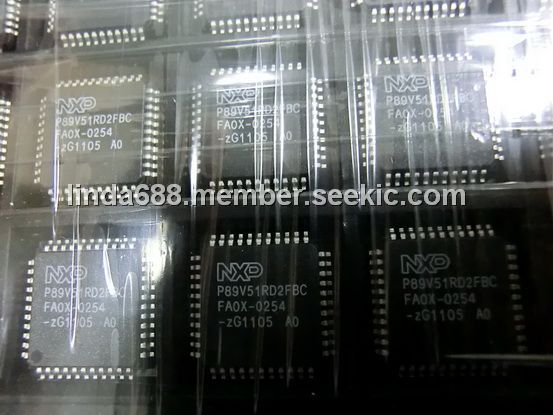

P89V51RD2FBC

64 kB, Flash, 1024 bytes, data RAM, Flash microcontroller, TQFP44 , 0 to 40 MHz, Low EMI mode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1,000,000.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1,000,000.00

PartNumber:: P89V51RD2FBC

Brand:: NXP Semiconductors - nxp | Pack: TQFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Miky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-12

From Other Seller

Part Number:P89V51RD2FBC
US $1.00 - 1,000,000.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The P89V51RD2FBC is an 80C51 microcontroller with 64 kB Flash and 1024 bytes of data RAM. A key feature of the P89V51RD2 is its X2 mode option. The design engineer can choose to run the application with the conventional 80C51 clock rate (12 clocks per machine cycle) or select the X2 mode (6 clocks per machine cycle) to achieve twice the throughput at the same clock frequency. Another way to benefit from this feature is to keep the same performance by reducing the clock frequency by half, thus dramatically reducing the EMI.

Parametrics

P89V51RD2FBC absolute maximum rating: (1)Tamb(bias) operating bias ambient temperature: -55 +125 ℃; (2)Tstg storage temperature range: -65 +150 ℃; (3)VEA voltage on EA pin to VSS: -0.5 14 V; (4)Vn DC voltage on any pin to ground potential: -0.5 VDD + 0.5 V; (5)Vit transient voltage (<20 ns) on any other pin to VSS: -1.0 VDD + 1.0 V; (6)IOL(I/O) maximum IOL per I/O pins P1.5, P1.6,P1.7: - 20 mA; (7)IOL(I/O) maximum IOL per I/O for all other pins: 15 mA; (8)Ptot(pack) total power dissipation per package Tamb = 25 ℃: 1.5 W.

Features

P89V51RD2FBC features: (1)80C51 Central Processing Unit; (2)5 V Operating voltage from 0 to 40 MHz; (3)64 kB of on-chip Flash program memory with ISP (In-System Programming) and IAP (In-Application Programming); (4)Supports 12-clock (default) or 6-clock mode selection via software or ISP; (5)SPI (Serial Peripheral Interface) and enhanced UART; (6)PCA (Programmable Counter Array) with PWM and Capture/Compare functions; (7)Four 8-bit I/O ports with three high-current Port 1 pins (16 mA each); (8)Three 16-bit timers/counters; (9)Programmable Watchdog timer (WDT); (10)Eight interrupt sources with four priority levels; (11)Second DPTR register; (12)Low EMI mode (ALE inhibit); (13)TTL- and CMOS-compatible logic levels.
