Product Summary
The NNCD6.2C-T1 is an electrostatic discharge noise clipping diode developed for E.S.D (Electrostatic Discharge) noise protection. Based on the IEC1000-4-2 test on electromagnetic interference (EMI), the diode assures an endurance of no less than 30 kV, thus making itself most suitable for external interface circuit protection.
Parametrics
NNCD6.2C-T1 absolute maximum ratings: (1)Temperature under bias:- 50 to 125 ℃; (2)Storage temperature:- 65 to 150 ℃; (3)Input or output voltage(1)(2): -0.6 to VCC +0.6 V; (4)Supply voltage: - 0.6 to 4 V; (5)Input/output supply voltage: - 0.6 to 4 V; (6)Identification voltage: - 0.6 to 13.5 V; (7)Program voltage: - 0.6 to 13.5 V.
Features
NNCD6.2C-T1 features: (1)Power Dissipation: 150 mW; (2)Surge Reverse Power: 85 W (tT = 10 μs 1 pulse); (3)Junction Temperature: 150 ℃; (4)Storage Temperature: –55 to +150 ℃.

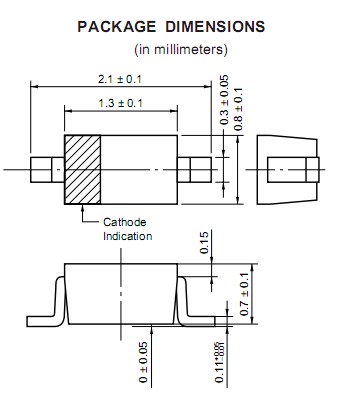

Diagrams
 |
