Product Summary

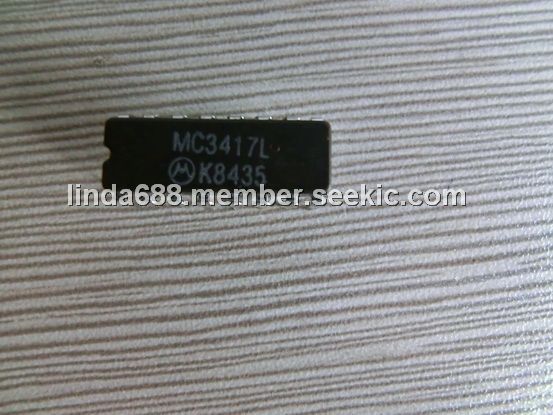

The MC3417L is a semiconductor. The MC3417L provids a simplified approach to digital speech encoding/decoding. The MC3417L CVSD is designed for military secure communication and commercial telephone applications. A single IC provides both encoding and decoding functions.
Parametrics
MC3417L absolute maximum ratings: (1)Power supply voltage, VCC: -0.4 to +18V; (2)Differential analog input voltage, VID: ±5.0V; (3)Digital input threshold voltage, VTH: -0.4V to VCC; (4)Logic input voltage, Vlogic: -0.4 to +18V; (5)Coincidence output voltage, VO: -0.4 to +18V; (6)Reference input voltage, VI: VCC/2 - 1.0V to VCC.
Features
MC3417L features: (1)Encode and decode function on the same chip with a digital input for selection; (2)Utilization of compatible I2L-Linear bipolar technology; (3)CMOS compatible digital output; (4)Digital input threshold selectable.

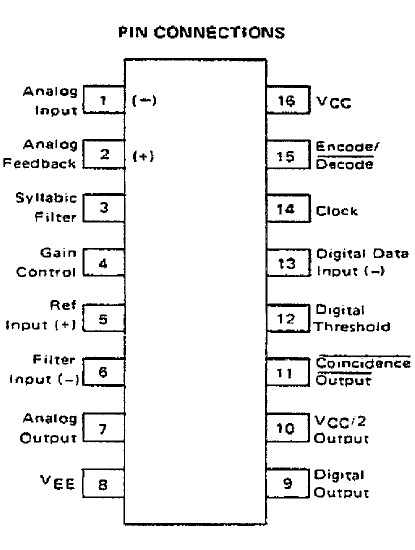

Diagrams
 |
