Product Summary

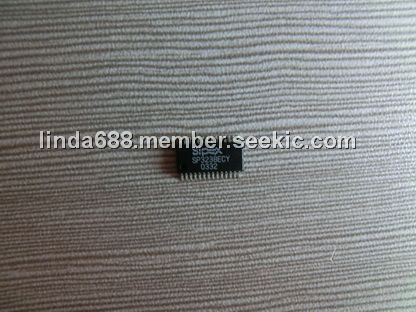

The SP3238ECY is a RS-232 transceiver solution intended for portable or hand-held applications such as notebook and palmtop computers. The SP3238ECY uses an internalhigh-efficiency, charge-pump power supply that requires only 0.1μF capacitors in 3.3V operation. This charge pump and driver architecture allow the SP3238ECY to deliver compliant RS-232 performance from a single power supply ranging from +3.0V to +5.0V. The SP3238EEA is a 5-driver/3-receiver device, ideal for laptop/notebook computer and PDA applications.
Parametrics
SP3238ECY absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)V+: -0.3V to +7.0V; (3)V-: +0.3V to -7.0V; (4)V+ + |V-|: +13V; (5)ICC (DC VCC or GND current): +100mA; (6)Input Voltages TxIN, ONLINE, SHUTDOWN, EN: -0.3V to +6.0V; (7)RxIN: +15V; (8)Output Voltages, TxOUT: +15V; (9)RxOUT, STATUS: -0.3V to (VCC + 0.3V); (10)Short-Circuit Duration, TxOUT: Continuous; (11)Storage Temperature:.-65 to +150℃.
Features
SP3238ECY features: (1)Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply; (2)Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source; (3)Auto-Online circuitry automatically wakes up from a 1μA shutdown; (4)Minimum 250Kbps data rate under load; (5)Regulated Charge Pump yields Stable RS-232 Outputs Regardless of VCC Variations; (6)Enhanced ESD Specifications: +15KV Human Body Model; +15KV IEC1000-4-2 Air Discharge; +8KV IEC1000-4-2 Contact Discharge.

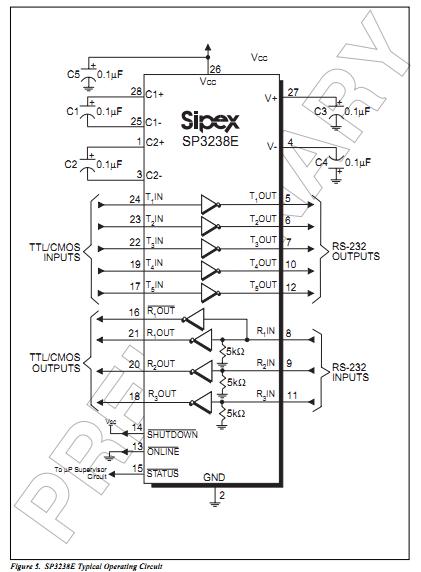

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP3238ECY-L |
Exar |
Universal Bus Functions Intel. +3V to +5.5V RS-232 |
Data Sheet |
|
|
||||||||||||
|
SP3238ECY-L/TR |
Exar |
Universal Bus Functions Intel. +3V to +5.5V RS-232 |
Data Sheet |
|
|
||||||||||||
