Product Summary
The MC33272 is a high performance operational amplifier. The MC33272 monolithic operational amplifier is quality fabricated with innovative Bipolar design concept. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip–R–Trim element for input offset voltage reduction. The MC33272 operational amplifier exhibits low input offset voltage and high gain bandwidth product. Dual–doublet frequency compensation of the MC33272 is used to increase the slew rate while maintaining low input noise characteristics. Its all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, and an excellent phase and gain margin.
Parametrics
MC33272 absolute maximum ratings: (1)Supply Voltage VCC to VEE: +36 V; (2)Output Short Circuit Duration (Note 2) tSC: Indefinite sec; (3)Maximum Junction Temperature TJ: +150 ℃; (4)Storage Temperature Tstg: –60 to +150 ℃.
Features
MC33272 features: (1)Input Offset Voltage Trimmed to 100 mV (Typ); (2)Low Input Bias Current: 300 nA; (3)Low Input Offset Current: 3.0 nA; (4)High Input Resistance: 16 MW; (5)Low Noise: 18 nV/ / Hz @ 1.0 kHz; (6)High Gain Bandwidth Product: 24 MHz @ 100 kHz; (7)High Slew Rate: 10 V/ms; (8)Power Bandwidth: 160 kHz; (9)Excellent Frequency Stability; (10)Unity Gain Stable: w/Capacitance Loads to 500 pF; (11)Large Output Voltage Swing: +14.1 V/ 4.6 V; (12)Low Total Harmonic Distortion: 0.003%.

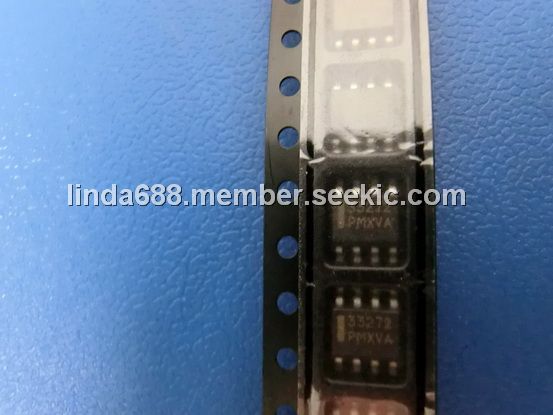

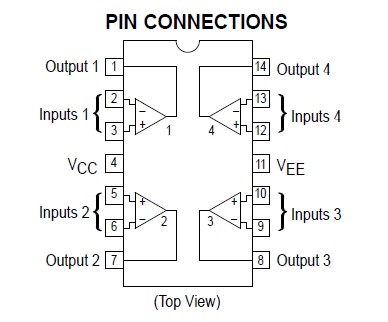

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33272 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33272A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC33272ADR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Dual Low Noise Low VIO Ind. Temp |
Data Sheet |
|
|
||||||||||||
|
MC33272APG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Dual Low Noise Low VIO Ind. Temp |
Data Sheet |
|
|
||||||||||||
|
MC33272AP |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Dual Low Noise |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33272ADR2 |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Dual Low Noise |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33272ADG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Dual Low Noise Low VIO Ind. Temp |
Data Sheet |
|
|
||||||||||||
|
MC33272AD |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Dual Low Noise |
Data Sheet |
Negotiable |
|
||||||||||||
