LTC1876EG

triple output switching regulator, 36-SSOP, 1A, 36V, 150kHz to 300kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10,000,000.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10,000,000.00

PartNumber:: LTC1876EG

Brand:: Linear Technology - Linear | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Miky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-12

From Other Seller

Part Number:LTC1876EG
US $1.00 - 10,000,000.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

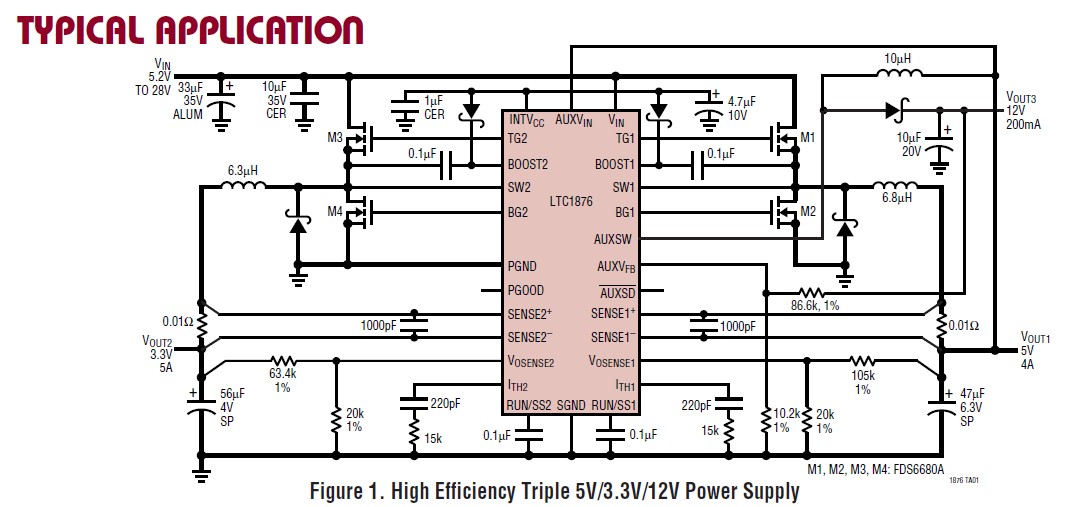

The LTC1876EG is a high performance triple output switching regulator. It incorporates a dual step-down switching controller that drives all N-channel synchronous power MOSFET stages. A step-up regulator with an internal 1A, 36V switch provides the third output. The LTC1876EG minimizes power loss and noise by operating the output stage of each controller out of phase. The applications of the LTC1876EG include: 3.3V Input Step-Down Converter, Notebook and Palmtop Computers, PDAs, Battery-Operated Digital Devices.

Parametrics

LTC1876EG absolute maximum ratings: (1)Input Supply Voltage (VIN): 36V to –0.3V; (2)Topside Driver Voltages(BOOST1, BOOST2): 42V to –0.3V; (3)Switch Voltage (SW1, SW2): 36V to –5V; (4)INTVCC, EXTVCC, RUN/SS1, RUN/SS2, PGOOD, (BOOST1-SW1), (BOOST2-SW2): 7V to –0.3V; (5)SENSE1+, SENSE2+, SENSE1–, SENSE2–Voltages: (1.1)INTVCC to –0.3V; (6)FREQSET, STBYMD, FCB, PGOOD Voltages: 7V to –0.3V; (7)ITH1, ITH2, VOSENSE1, VOSENSE2 Voltages: 2.7V to –0.3V; (8)Peak Output Current <10ms (TG1, TG2, BG1, BG2): 3A; (9)INTVCC Peak Output Current: 50mA.

Features

LTC1876EG features: (1)Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise; (2)Power Good Output Voltage Indicator; (3)OPTI-LOOP Compensation Minimizes COUT; (4)DC Programmed Fixed Frequency 150kHz to 300kHz; (5)Wide VIN Range: 3.5V to 36V Operation; (6)Very Low Dropout Operation: 99% Duty Cycle; (7)Adjustable Soft-Start Current Ramping; (8)Latched Short-Circuit Shutdown with Defeat Option; (9)Remote Output Voltage Sense and OV Protection; (10)5V and 3.3V Standby Regulators; (11)Selectable Const. Freq. or Burst ModeTM Operation.
