Product Summary

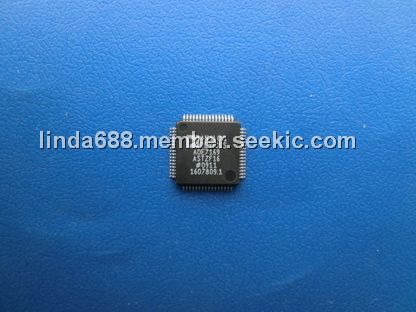

The ADE7169F16 is a Single-Phase Energy Measurement IC which integrates Analog Devices Energy (ADE) Metering IC analog front end and fixed function DSP solution with an enhanced 8052 MCU core, a RTC, an LCD driver and all the peripherals to make an electronic energy meter with LCD display with a single part.The ADE Energy Measurement core includes Active, Reactive, Apparent Energy calculations, as well as voltage and current rmsmeasurements. This information is ready to use for energy billing by using built-in energy scalars. Many power linesupervisory features like SAG, Peak, Zero-crossing are also included in the energy measurement DSP to simplify energy meterdesign.
Parametrics
ADE7169F16 absolute maximum ratings: (1)VDD to DGND: –0.3 V to +3.7 V; (2)VBAT to DGND: –0.3 V to +3.7 V; (3)VDCIN to DGND: –0.3 V to VSWOUT + 0.3 V; (4)Input LCD voltage to AGND LCDVA, LCDVB, LCDVC1: –0.3 V to VSWOUT + 0.3 V; (5)Analog Input Voltage to AGNDVP, VN, IAP, IBPN and IN: –2 V to +2 V; (6)Digital Input Voltage to DGND: –0.3 V to VSWOUT + 0.3 V; (7)Digital Output Voltage to DGND: –0.3 V to VSWOUT + 0.3 V; (8)Operating Temperature Range Industrial: –40°C to +85°C; (9)Storage Temperature Range: –65°C to +150°C.
Features
ADE7169F16 features: (1)Wide supply voltage operation 2.4 to 3.7V; (2)Battery supply input with Automatic switch-over; (3)Reference 1.2 V ± 1% (drift 50 ppm/°C Maximum); (4)64-Lead Quad Flat (LQFP) or Chip Scale (LCSP) Lead FreePackages; (5)Operating Temperature -40°C to 85°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADE7169ASTZF16 |
|
IC ENERGY METER 1PHASE 64LQFP |
Data Sheet |
|
|
||||||||||||||||||
|
ADE7169ASTZF16-RL |
|
IC ENERGY METER 1PHASE 64LQFP |
Data Sheet |
|
|
||||||||||||||||||
